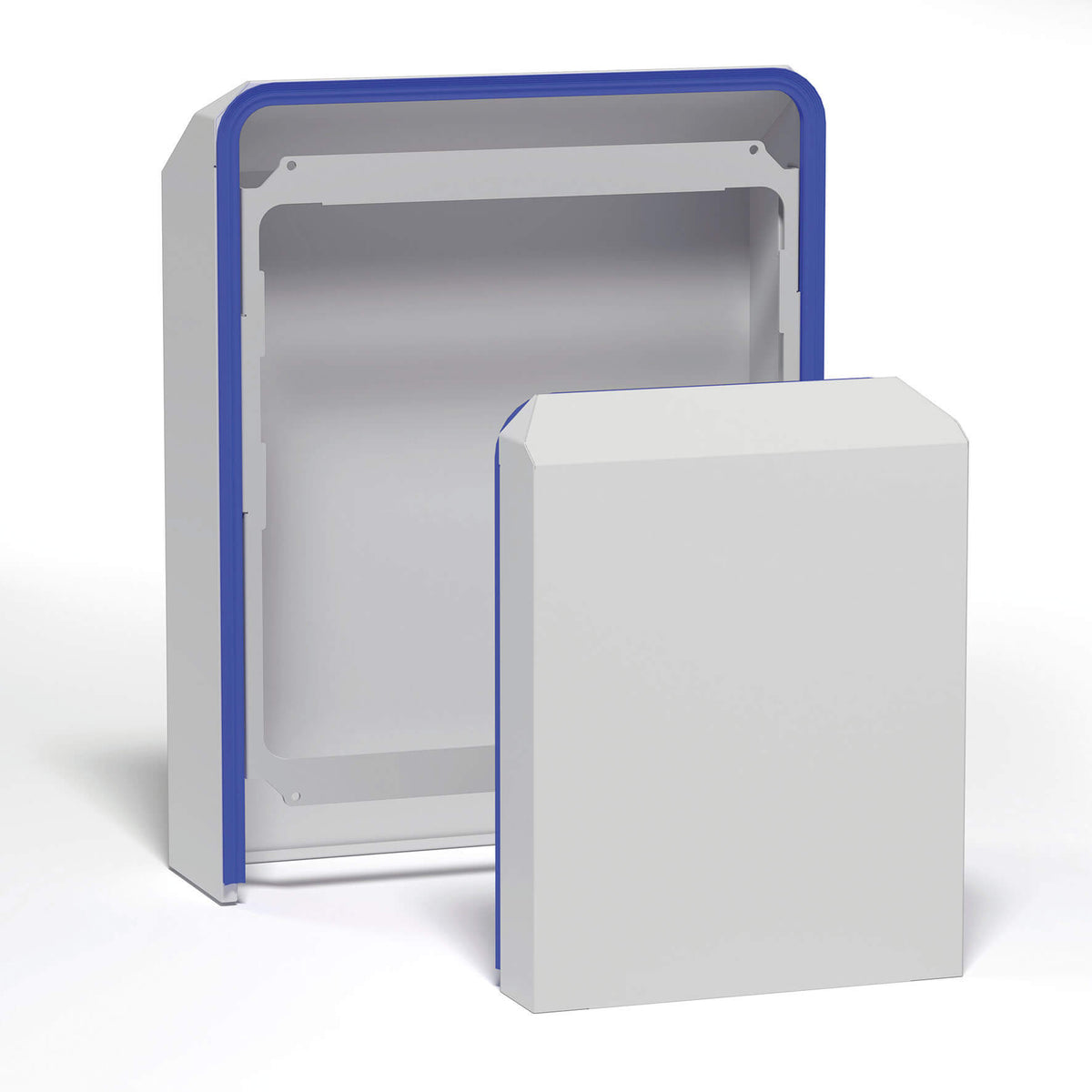

Fandis MRH20MU1 – Hose-proof FF20 protection hood RAL 7035
Fandis MRH20MU1 – Hose-proof FF20 protection hood RAL 7035
Price on request
Shipping calculated at checkout.
Powder-coated steel cover to be applied to exhaust filters and filter fans to protect the internal components of the electrical panel from water jets and the ingress of solid objects, in order to elevate the protection rating to IP56. Also available in stainless steel (AISI 304) and with FDA-compliant gasket silicone for applications with high hygienic standards in the Food & Beverage sector and for outdoors.$Patented
Technical specifications
| Manufacturer part number | MRH20MU1 |
|---|---|
| Approvals | CE; cURus; cULus; UKCA |
| IP Protection Degree | IP56 |
| Casing Material | Painted Steel |
| Fixing System | Screws |
| RAL Number | 7035 |
| Suitable for filters | FF20 |
| UL Environmental Type Rating | Type 1, 12, 3, 3R, 4 |
| UL File Number Recognized Component | E237844 |
