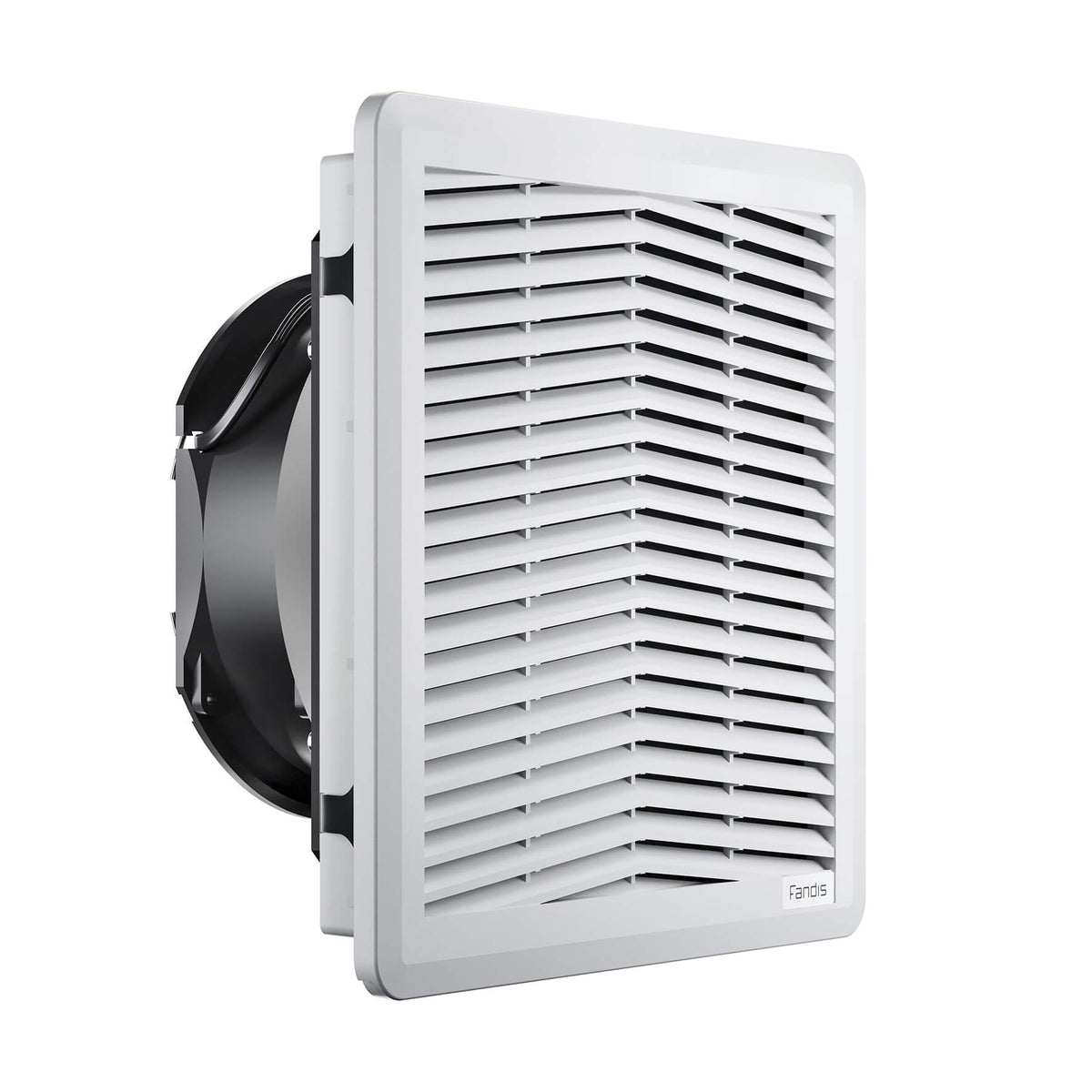

Fandis FF15D48UFR – FAN FILTER
Fandis FF15D48UFR – FAN FILTER
Price on request
Shipping calculated at checkout.
FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.
Technical specifications
| Manufacturer part number | FF15D48UFR |
|---|---|
| Approvals | CE; UKCA |
| Motor Protection | Electronically Protected |
| Operating Voltage | 33-72 V d.c. |
| Rated Current | 0.9 A |
| Rated Power | 43 W |
| Rated Voltage | 48 V d.c. |
| IP Protection Degree | IP54 |
| Operating Temperature | -10÷60 °C |
| Storage Temperature | -40÷70 °C |
| Airflow Direction | Reverse |
| Casing Material | PC/ABS UL94 V-0 |
| Electrical Connection | Screwless Terminal Block |
| Fan Noise | 59 dB(A) |
| Filter Class | G3 EN 779 ISO coarse 55% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| Life Expectancy | 70000 h at 40 °C |
| RAL Number | 7035 |
| Spare Parts Filter Media | M15FPF-EU3 |
| Wires Section | 0.75-2.5 mm² 20-14 AWG |
| Bearing | Ball Bearing |
| Mounting Wall Thickness | 1.3-3.7 mm |
| Airflow with Exhaust Filter | 210 m³/h |
| Max Airflow | 310 m³/h |
| Max Static Pressure | 250 Pa |
