SALTEK
Inventarna številka:A04169
FLP-12,5-075-VH/1S
FLP-12,5-075-VH/1S
Price on request
Dostava se obračuna ob zaključku nakupa.

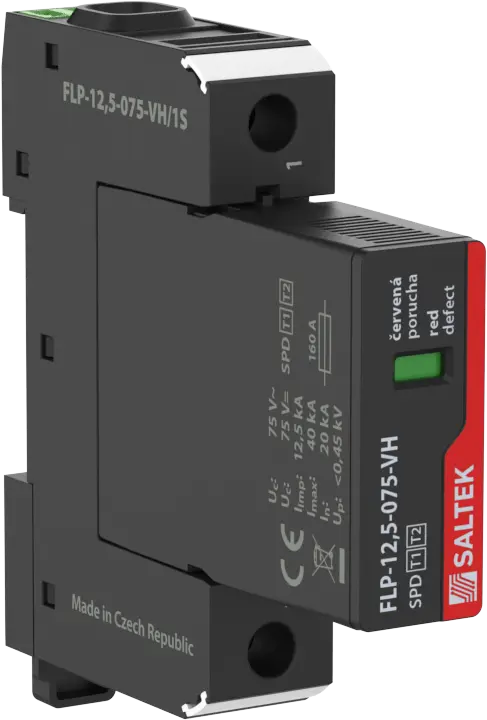

SALTEK FLP-12,5-075-VH/1S — Single-pole lightning current and surge arrester, installation at the entry into building, 48 - 60 V AC/DC, 12,5 kA (10/350 µs), 40 kA (8/20 µs), remote fault signalling.
Technical specifications
| SALTEK order number | A04169 |
|---|---|
| EAN | 8595090541691 |
| Nominal voltage | 60 V |
| Maximum operating voltage | 75 V AC |
| Maximum operating voltage (DC) | 75 V DC |
| ETIM class | EC000381 |
| Net weight | 145 g |
| Packing dimensions | 82 × 18 × 101 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
