SALTEK
Inventarna številka:A05129
DM-060/1-RS
DM-060/1-RS
Price on request
Dostava se obračuna ob zaključku nakupa.

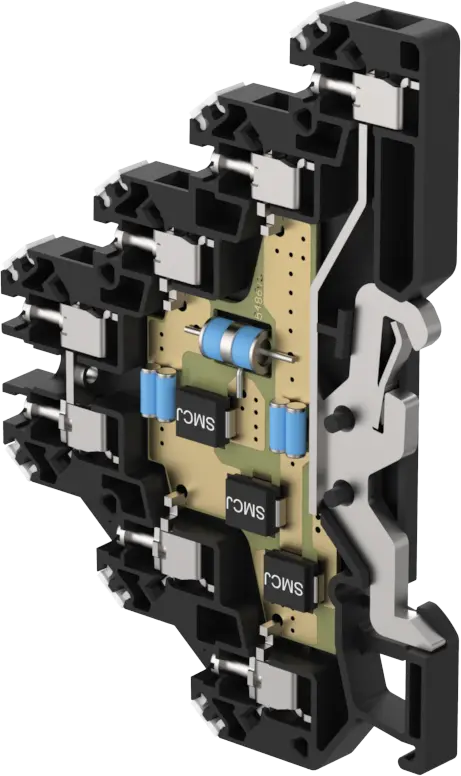

SALTEK DM-060/1-RS — Coupling impedance (resistance), screw terminals, coarse and fine surge protection for 2-core signalling networks, installation close to protected equipment, for protection of communication interfaces, mainly the RS-485 lines, of I&C, electronic security and fire detection systems, etc. against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and common mode (core – PE).
Technical specifications
| SALTEK order number | A05129 |
|---|---|
| EAN | 8595090551294 |
| Nominal voltage | 60 V |
| Maximum operating voltage | 45 V AC |
| Maximum operating voltage (DC) | 64 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 6.5 MHz |
| ETIM class | EC000943 |
| Net weight | 35 g |
| Packing dimensions | 102 × 71 × 27 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
