DM-024/1 4R DJ

Name: DM-024/1 4R DJ
Brand: SALTEK
SKU: A01357
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

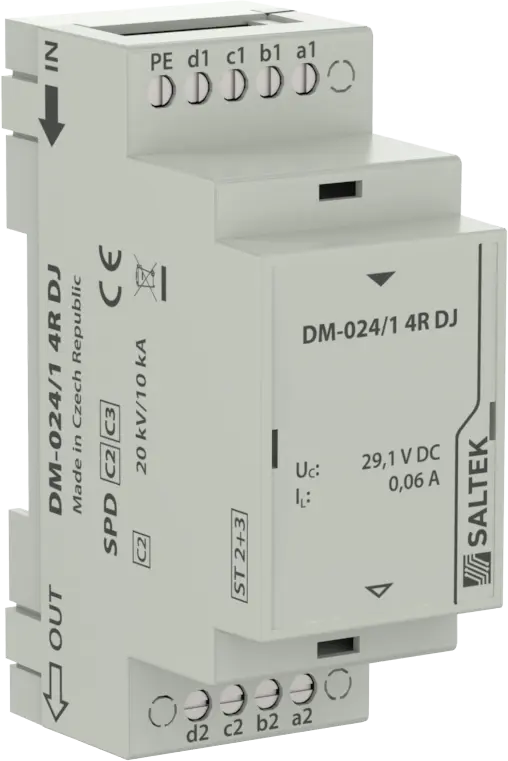

SALTEK DM-024/1 4R DJ — Coupling impedance (R – resistance), coarse and fine surge protection for 4-core signalling lines, installation close to protected equipment, for protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and coarse protection in common mode (core – PE).

Technical specifications

SALTEK order number	A01357
EAN	8595090513575
Nominal voltage	24 V
Maximum operating voltage	20.6 V AC
Maximum operating voltage (DC)	29.1 V DC
Nominal load current	0.06 A
Frequency / bandwidth value	3.4 MHz
ETIM class	EC000943
Net weight	75 g
Packing dimensions	65 × 63 × 105 mm
