DM-012/1-R-DJ

Name: DM-012/1-R-DJ
Brand: SALTEK
SKU: A06727
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

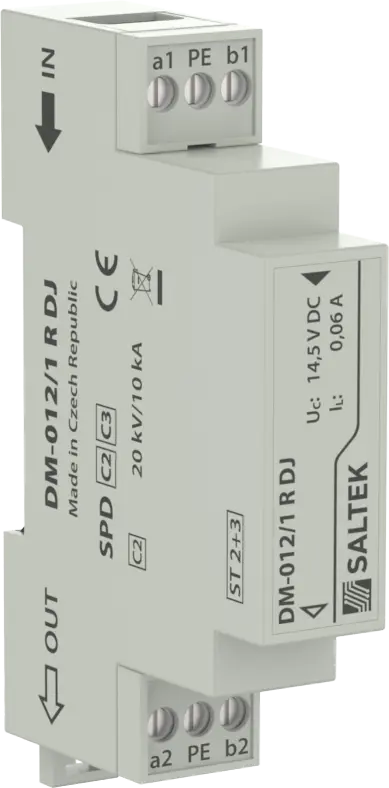

SALTEK DM-012/1-R-DJ — Coupling impedance (R – resistance), coarse and fine surge protection for 2-core signalling lines, installation close to protected equipment, for protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and common mode (core – PE).

Technical specifications

SALTEK order number	A06727
EAN	8595090567271
Nominal voltage	12 V
Maximum operating voltage	11 V AC
Maximum operating voltage (DC)	16 V DC
Nominal load current	0.5 A
Frequency / bandwidth value	2 MHz
ETIM class	EC000943
Net weight	58 g
Packing dimensions	124 × 82 × 25 mm
