SALTEK
Inventarna številka:A07085
DL-1G-60V-POE-M
DL-1G-60V-POE-M
Price on request
Dostava se obračuna ob zaključku nakupa.

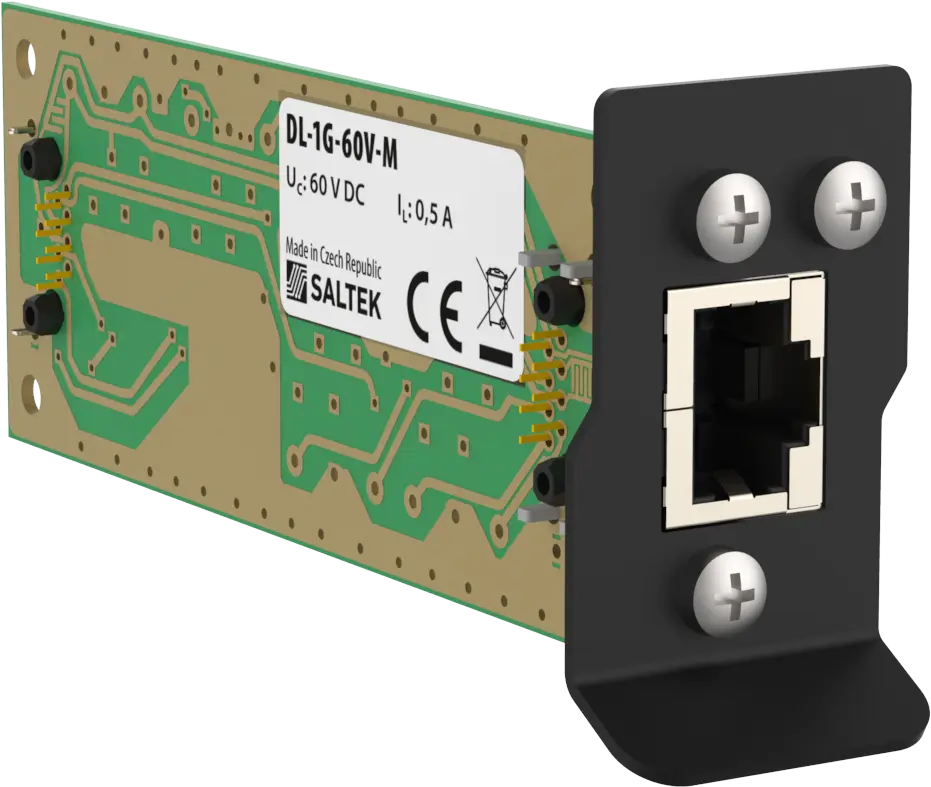

SALTEK DL-1G-60V-POE-M — LPZ 0 and higher, for high-speed general structured cabling networks, combined (2-stage) SPD for high-speed general structured cabling networks with signals up to 60 V, LPZ 0 to LPZ 1 boundary installation, to protect devices working with Ethernet, KNX, DMX, RS-485,... Signals, module for installation into DL-PL-RACK-1U box.
Technical specifications
| SALTEK order number | A07085 |
|---|---|
| EAN | 8595090541769 |
| Nominal voltage | 60 V |
| Maximum operating voltage (DC) | 60 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 250 MHz |
| ETIM class | EC000943 |
| Net weight | 31 g |
| Packing dimensions | 26 × 98 × 42.5 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
