SALTEK
Inventarna številka:A04181
DL-10G-PoE-M
DL-10G-PoE-M
Price on request
Dostava se obračuna ob zaključku nakupa.

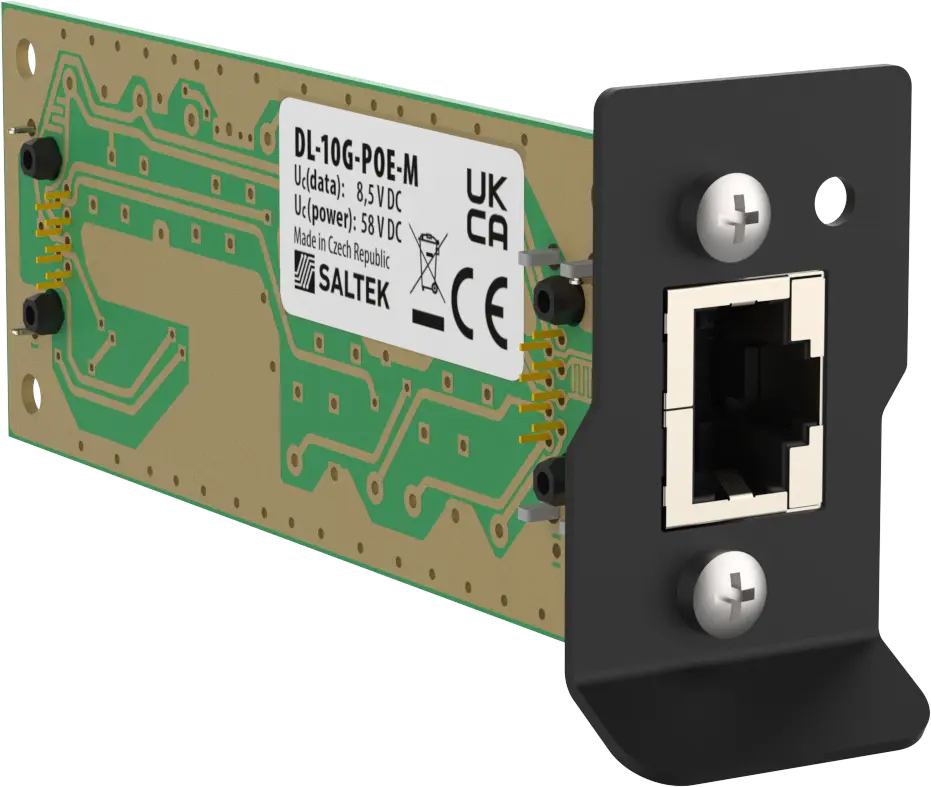

SALTEK DL-10G-PoE-M — LPZ 0 and higher, for high-speed Ethernet networks with PoE, combined (2-stage) SPD for high-speed Ethernet networks with integrated PoE protectors, LPZ 0 to LPZ 1 boundary installation, compatible with all PoE/PoE+/PoE++ types (IEEE802.3 af/at/bt), module for installation into DL-PL-RACK-1U box.
Technical specifications
| SALTEK order number | A04181 |
|---|---|
| EAN | 8595090541813 |
| Nominal voltage | 8.5 V |
| Maximum operating voltage (DC) | 8.5 V DC |
| Nominal load current | 2 A |
| Frequency / bandwidth value | 500 MHz |
| ETIM class | EC000943 |
| Net weight | 31 g |
| Packing dimensions | 26 × 98 × 42.5 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
