SALTEK
Inventarna številka:A05172
CLSA-48
CLSA-48
Price on request
Dostava se obračuna ob zaključku nakupa.

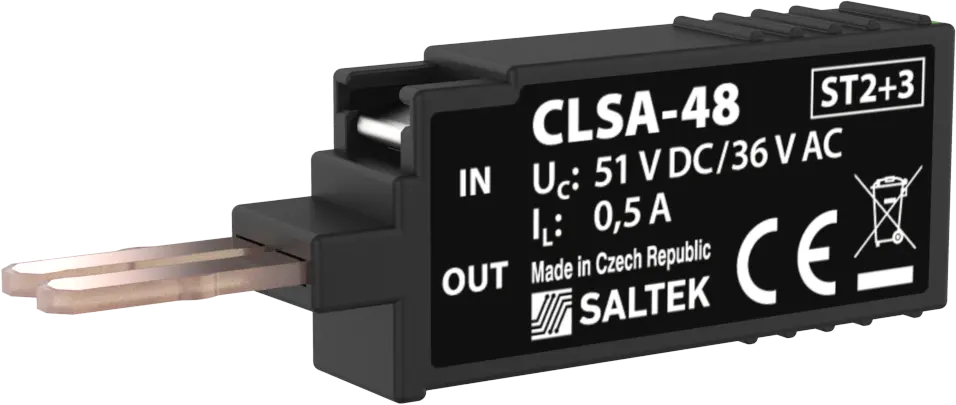

SALTEK CLSA-48 — For LSA-PLUS separating strips, combination of coarse and fine protection of data and I&C lines, installation close to protected equipment, for protection of communication interfaces and measuring lines of I&C, electronic security and fire detection systems, etc. against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and coarse protection in common mode (core – PE).
Technical specifications
| SALTEK order number | A05172 |
|---|---|
| EAN | 8595090551720 |
| Maximum operating voltage | 36 V AC |
| Maximum operating voltage (DC) | 51 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 6.5 MHz |
| ETIM class | EC000943 |
| Net weight | 10 g |
| Packing dimensions | 70 × 25 × 15 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
