Pizzato
Inventarna številka:FY 60AD6D0A-N07
FY 60AD6D0A-N07
FY 60AD6D0A-N07
Availability: Ships in 2–3 weeks
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

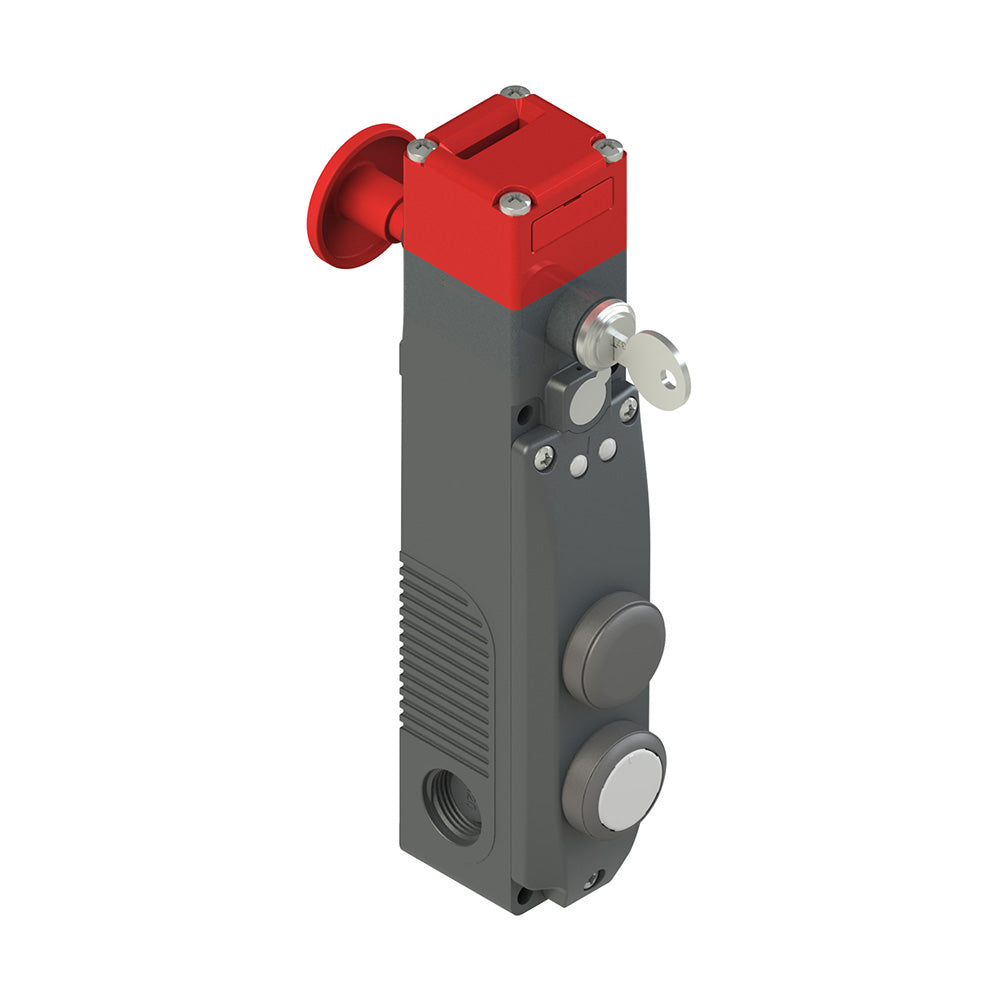

FY series safety switch with separate actuator with lock, Housing: Technopolymer housing, three M20x1,5 cable entries, Contact block: 1NO+1NC moved by actuator and 1NO+1NC moved by solenoid, Head: Rotating head with lock auxiliary release device and escape pushbutton, Working method: D working method, locked actuator with de-energized solenoid, Power: 24 Vac/dc, LED: 2 green LED switched-on by the solenoid power supply, Actuator: Without actuator , Protection degree: IP65 according to EN 60529.
Technical specifications
| Manufacturer part number | FY 60AD6D0A-N07 |
|---|---|
| EAN | 8018851606960 |
| Minimum order quantity | 1 |
| Weight | 842 g |
| Customs tariff number | 85369095 |
| Product range | FY switches with solenoid |
| ETIM class | EC002593 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
