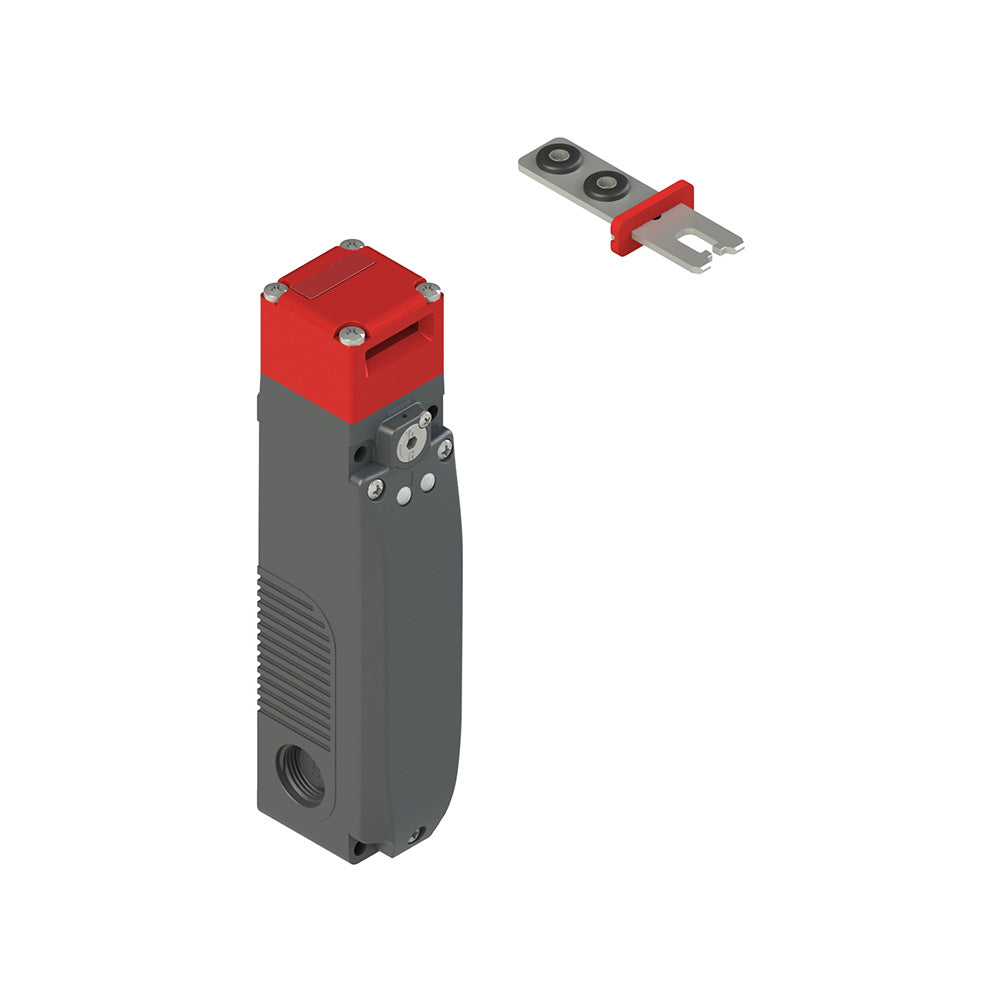

FY 60AD1D0A-F22

FY series safety switch with separate actuator with lock, Housing: Technopolymer housing, three M20x1,5 cable entries, Contact block: 1NO+1NC moved by actuator and 1NO+1NC moved by solenoid, Head: Rotating head, Working method: D working method, locked actuator with de-energized solenoid, Power: 24 Vac/dc, LED: 2 green LED switched-on by the solenoid power supply, Actuator: Complete with straight actuator with rubber mountings VF KEYF22, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.

Technical specifications

Documentation

• English catalogue / technical documentation 1
