Pizzato
Inventarna številka:FX 7A7-M2
FX 7A7-M2
FX 7A7-M2
Availability: Ships in 2–3 weeks
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

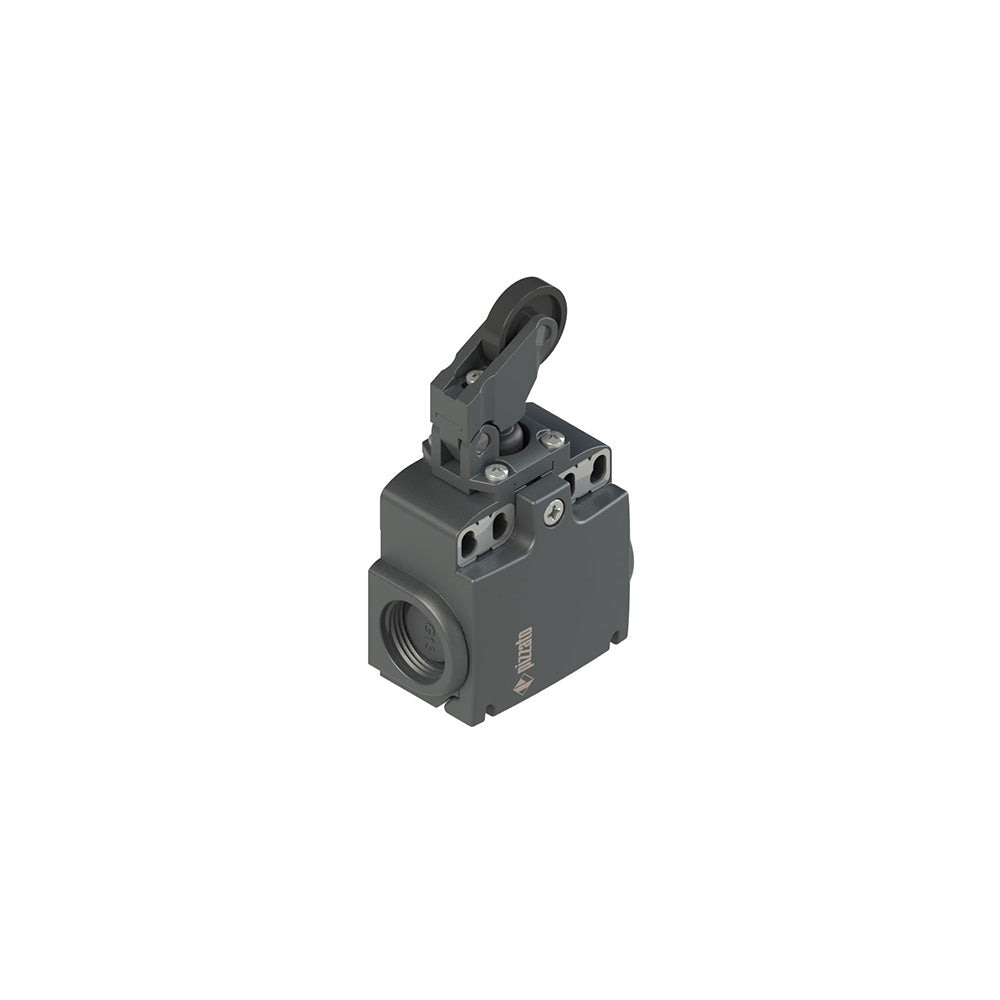

Position switch with one-way roller adjustable, external gasket, Housing: Technopolymer housing, two knock-out threaded conduit entries M20x1,5 (FX series), Contact block: 1NO+1NC slow action, overlapped contacts (B7), Head: With one-way roller, external gasket for horizontal or vertical operations, Protection degree: IP67 according to EN 60529, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FX 7A7-M2 |
|---|---|
| EAN | 8018851353420 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | FX |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
