Pizzato
Inventarna številka:FX 2093-X
FX 2093-X
FX 2093-X
Availability: Ships in 2–3 weeks
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

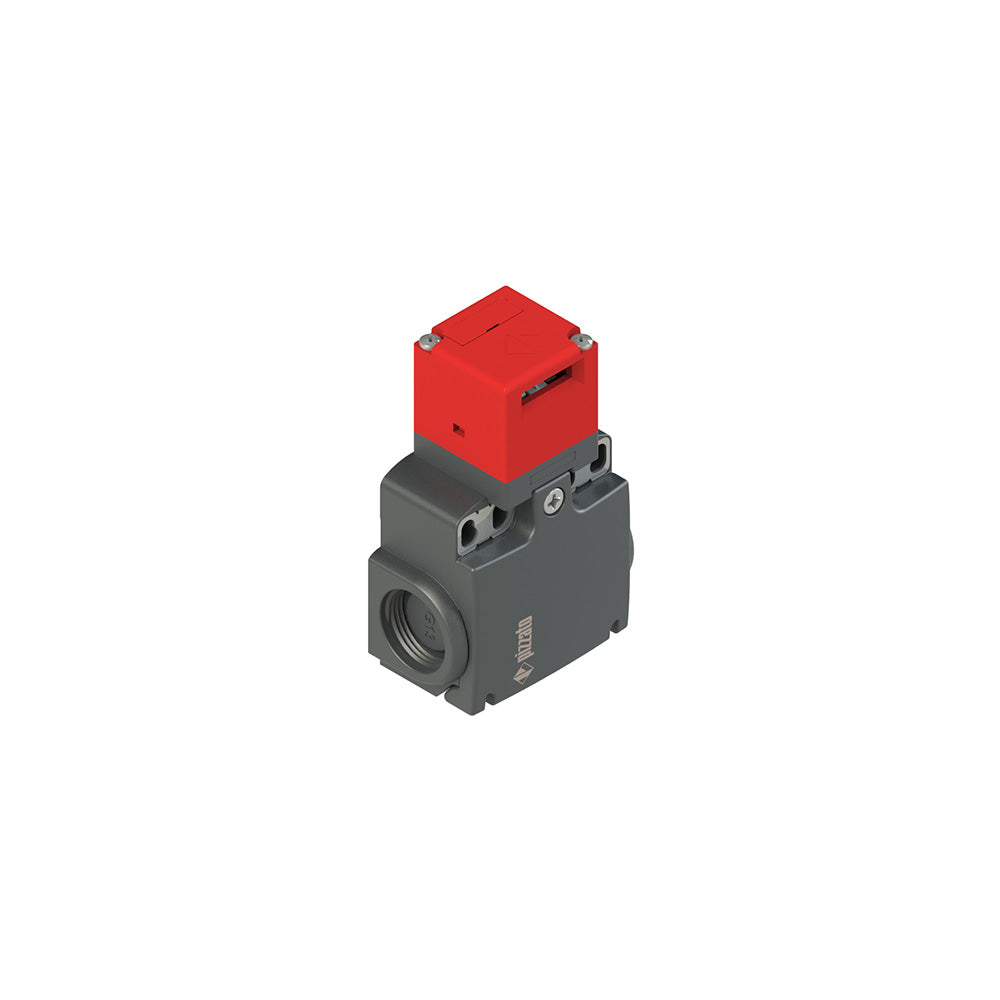

Safety switch with separate actuator, Housing: Technopolymer housing, two knock-out threaded conduit entries PG 13,5 and external parts in stainless steel (FX series), Contact block: 1NO+2NC slow action (B20), Head: With separate actuator with external parts in stainless steel, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FX 2093-X |
|---|---|
| EAN | 8018851223051 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | With separate actuator - normal duty |
| ETIM class | EC002592 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
