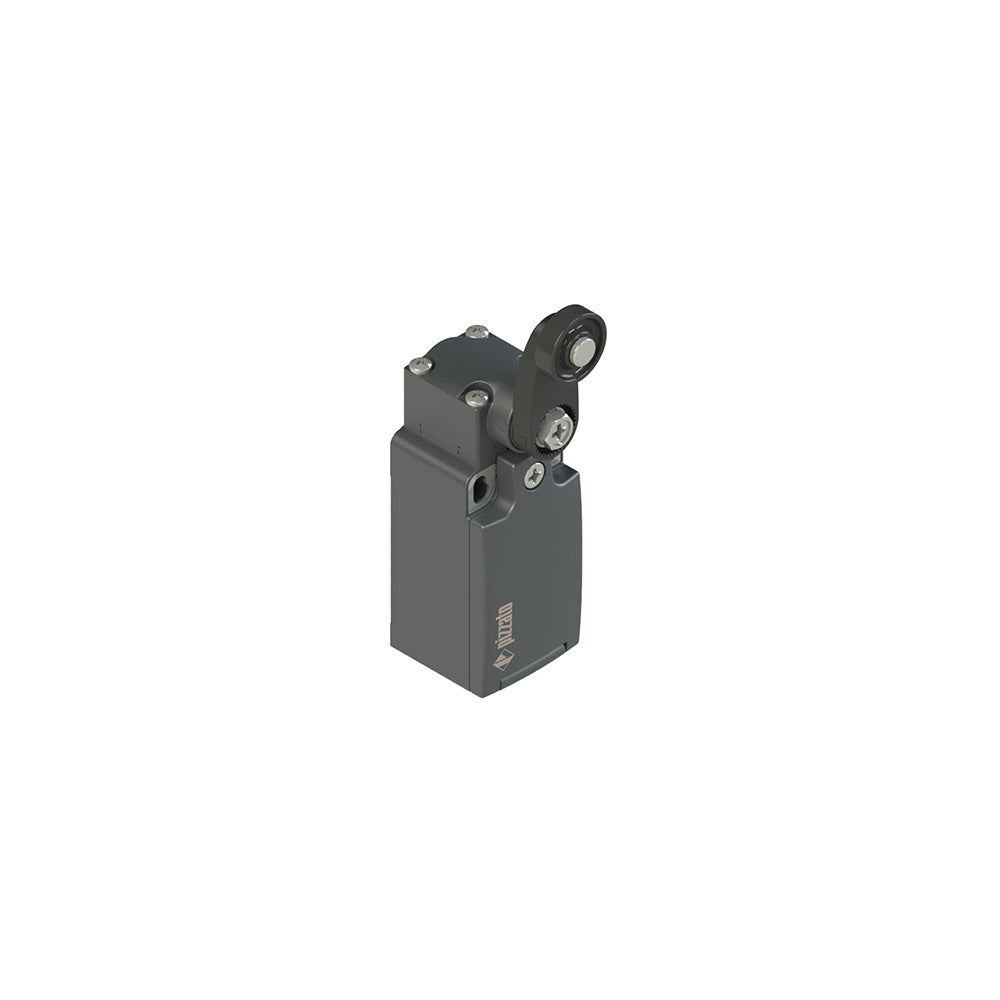

FR 1630-M1

Position switch with roller lever, Housing: Technopolymer housing, one threaded M16x1,5 conduit entry (FR series), Contact block: 2NC slow action, independent contacts (B16), Head: For rotating levers for 2NC contack blocks, slow action independent, Actuator: Rotating plastic lever with technopolymer roller, 18 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.

Technical specifications

Documentation

• English catalogue / technical documentation 1
