Pizzato
Inventarna številka:FP 6R2-C10F1M2
FP 6R2-C10F1M2
FP 6R2-C10F1M2
Availability: Ships in 2–3 weeks
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

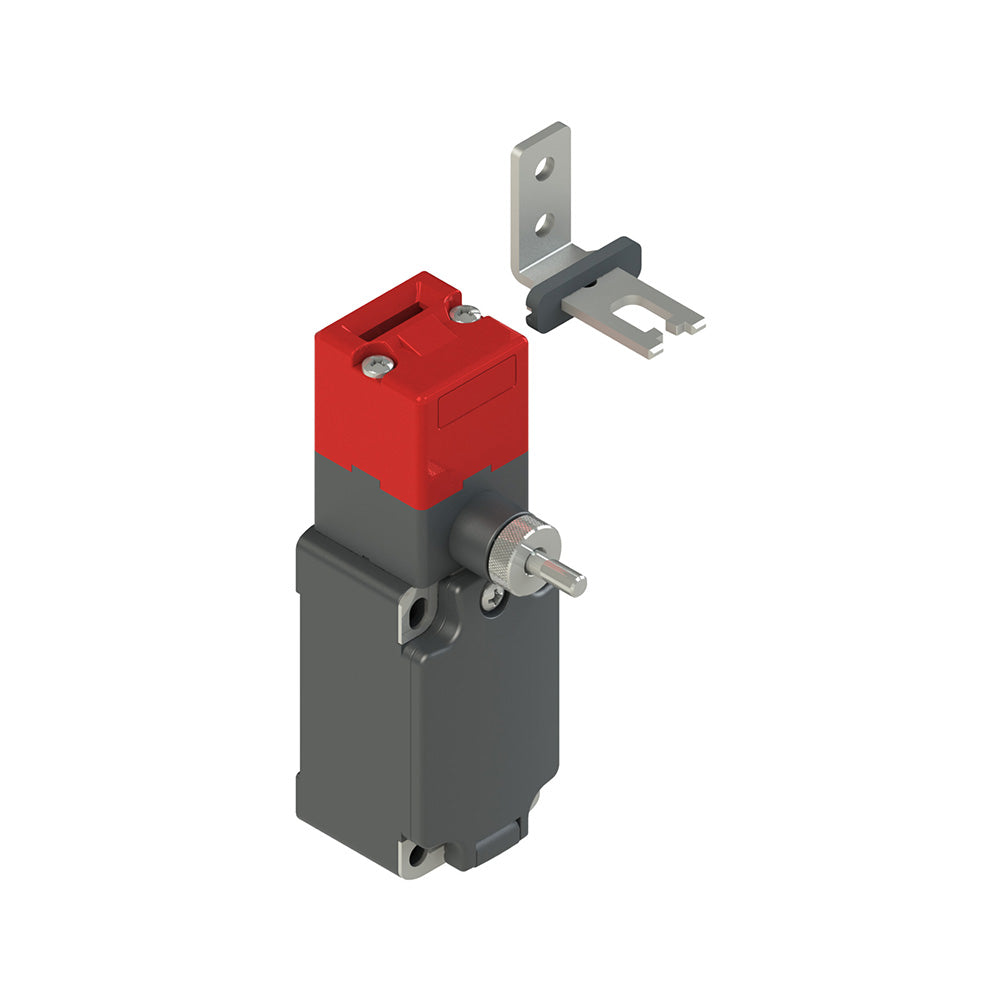

Safety switch with manual mechanical delay , Safety switch with manual mechanical delay and separate actuator, Housing: Made of glass-reinforced technopolymer, one threaded M20x1,5 conduit entry (FP series), Contact block: 1NO+1NC slow action (B6), Head: With manual mechanical delay, short knob, 10 s, Actuator: Angled, Protection degree: IP67 according to EN 60529.
Technical specifications
| Manufacturer part number | FP 6R2-C10F1M2 |
|---|---|
| EAN | 8018851216084 |
| Minimum order quantity | 1 |
| Weight | 277 g |
| Customs tariff number | 85369095 |
| Product range | With mechanical delay |
| ETIM class | EC002593 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
