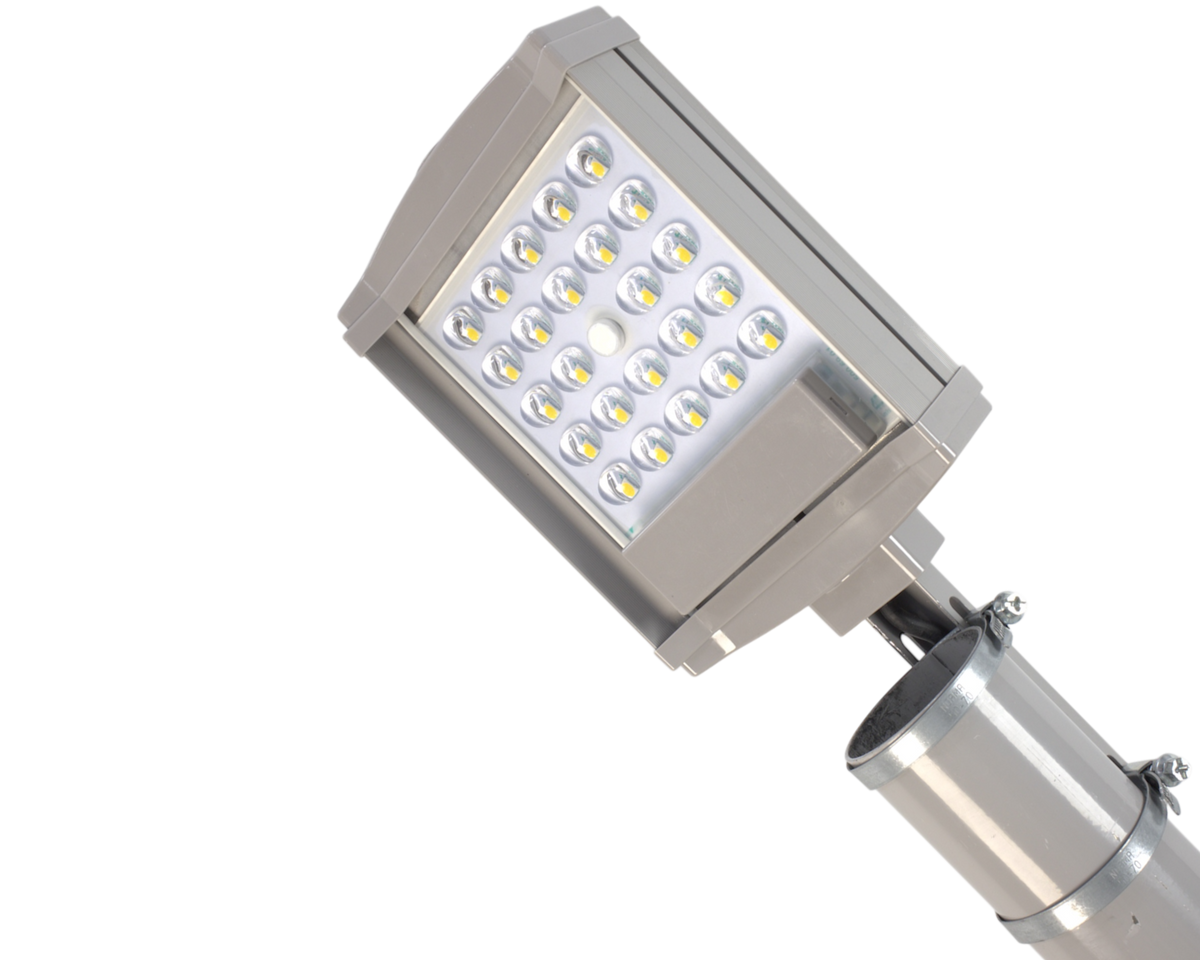

4S4 SMB-090 is an LED luminaire from the SMB series for 230 V / 50 Hz operation. The manufacturer datasheet specifies 90 W power consumption and 16,200 lm luminous flux.
Technical specifications
Input current
0.39 A
Power
90 W
Colour temperature
3000–5000 K
Luminous flux
16,200 lm
Dimensions
449(349) × 143 × 46 mm
Weight
1.2 kg
LED lifetime
>50,000 h
Ambient temperature
-20 to +50 °C
CRI
>70
Protection
IP65
Body
aluminium
Diffuser
polycarbonate
Mounting
Ø60
Warranty
3 years
