SALTEK
SKU:A07054
SLP-150-VB/1S
SLP-150-VB/1S

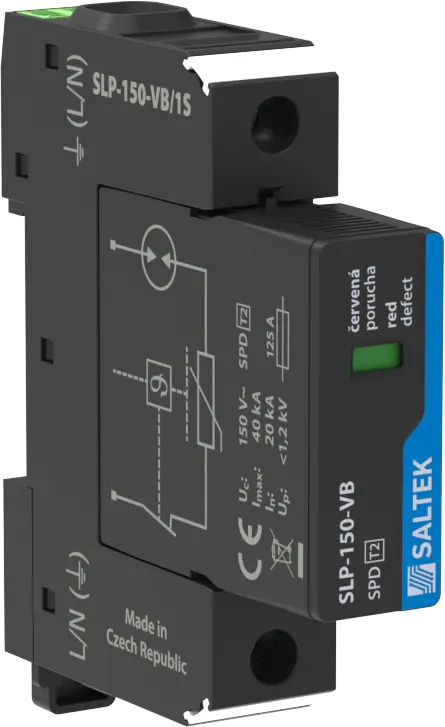

SALTEK SLP-150-VB/1S — Pluggable module, visual fault signalling, remote fault signalling, combined type surge arrester (serial combination varistor+GDT), installation to LV installations, especially to sub-distribution boards, suitable also for measuring circuits for protection of the installations and equipments against impact of induced overvoltages during a lightning strike in areas with higher storm activity or switching overvoltages or as the first stage of for protection for measuring circuits, zero leakage current.
Technical specifications
| SALTEK order number | A07054 |
|---|---|
| EAN | 8595090570547 |
| Nominal voltage | 100 V |
| Maximum operating voltage | 150 V AC |
| Maximum operating voltage (DC) | 120 V DC |
| ETIM class | EC000381 |
| Net weight | 120 g |
| Packing dimensions | 72 × 18 × 82 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
