SKU:RUC-M-3052-25-W110

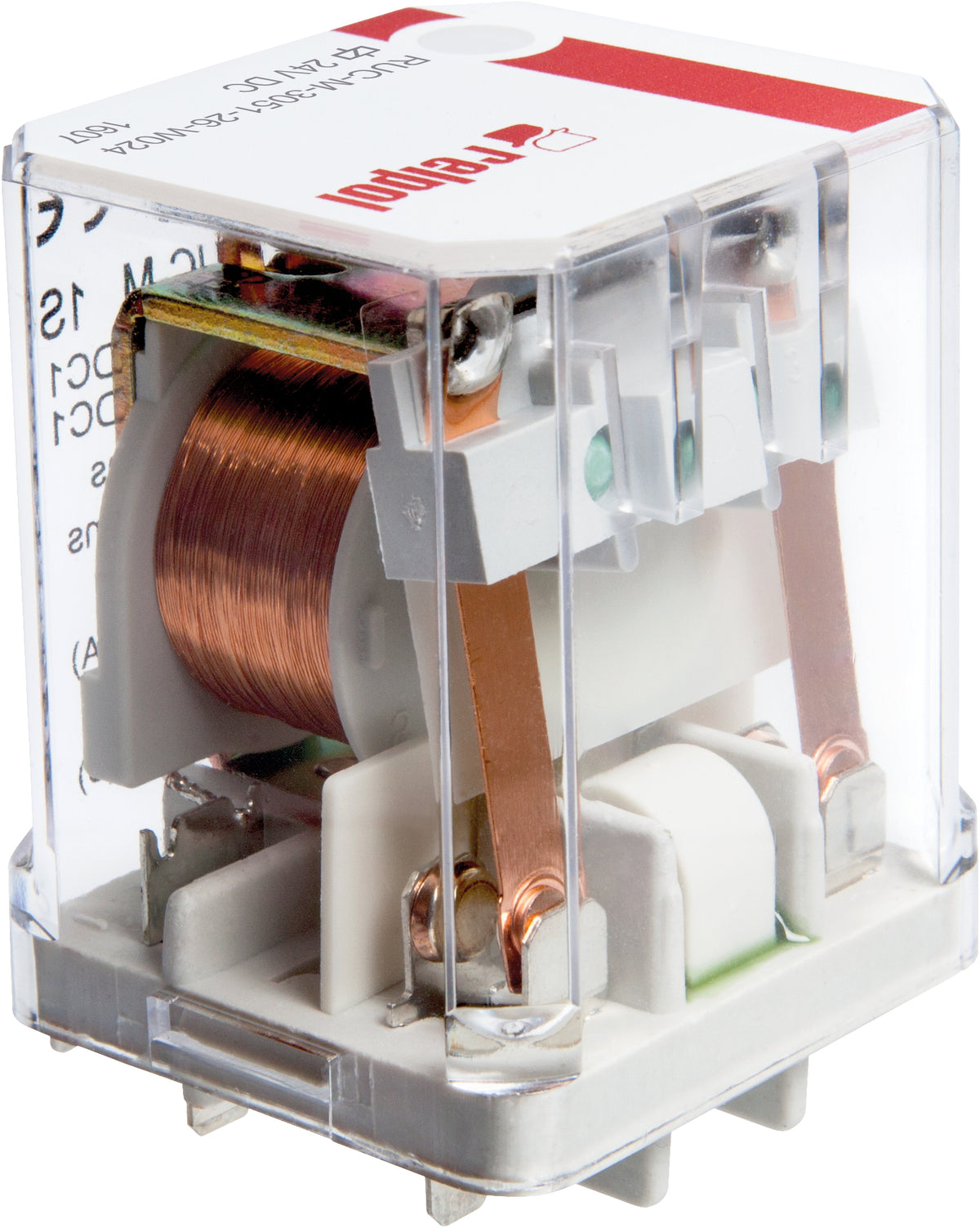

Relpol RUC-M-3052-25-W110 – Industrial Relays
Relpol RUC-M-3052-25-W110 – Industrial Relays
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.
Industrial relays RUC-M-3052-25-W220, 2 NO contact gap ≥ 3 mm. Contact material: AgSnO2. Voltage coil 220 V DC reinforced. Rated load AC1 16 A / 250 V AC. Mounting: for PCB. Cover protection category .
Technical specifications
| Type of coil supply | DC reinforced |
|---|---|
| Coil voltage | 110 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 2 NO contact gap ≥ 3 mm |
| Rated load AC1 | 16 A / 250 V AC |
| Rated load DC1 | 4,5 A / 220 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for PCB |
| Depth | 36,1 |
| Width mm | 38,6 |
| Height mm | 56,5 |
| Weight kg | 0,08 |
| ETIM class | EC001437 |
| Relay type | RUC-M |
| Ip cover | IP 00 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
