Relpol
SKU:RM12N-2211-25-1048

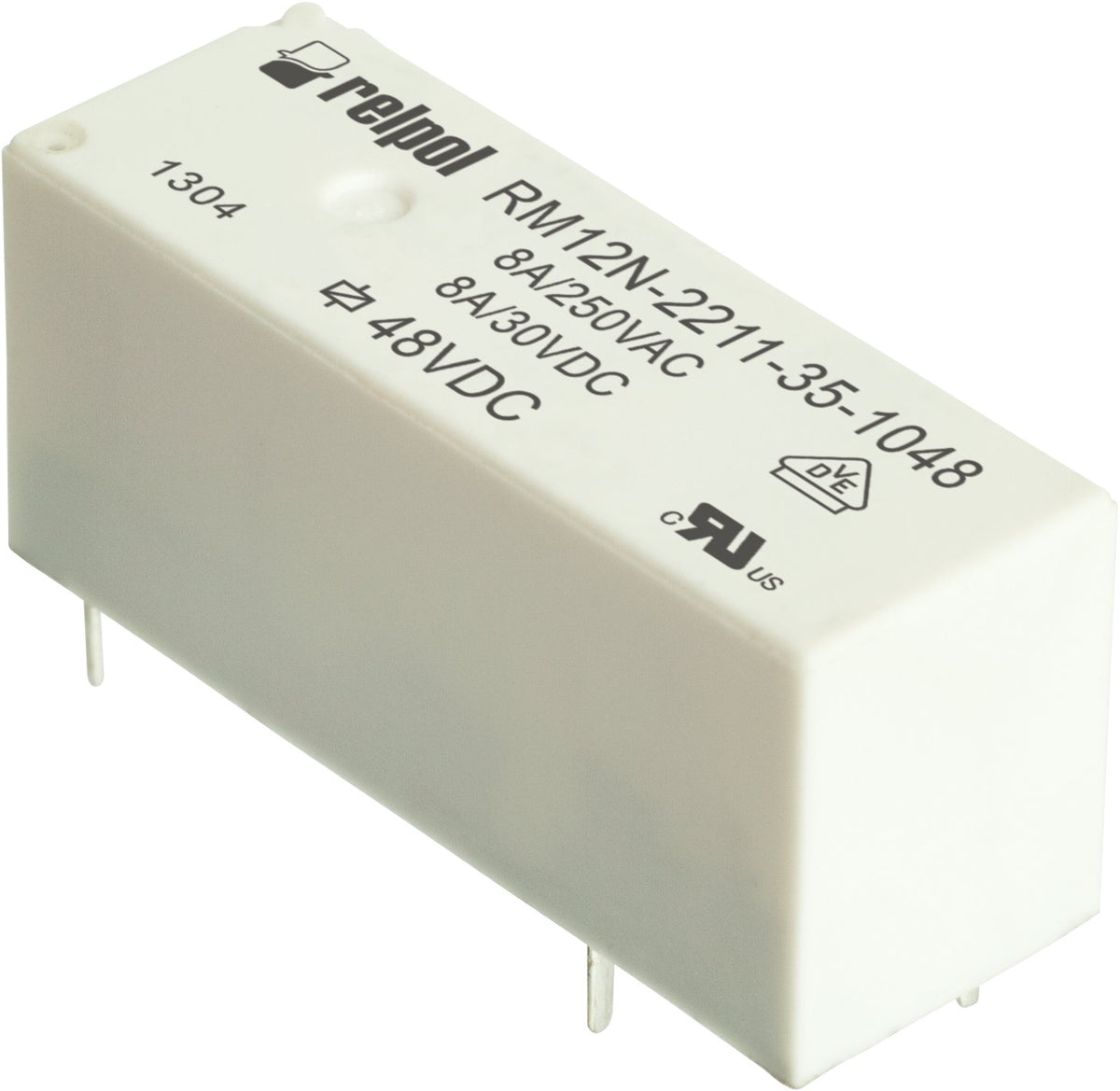

Relpol RM12N-2211-25-1048 – Industrial Relays
Relpol RM12N-2211-25-1048 – Industrial Relays
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.
Relpol RM12N-2211-25-1048. Industrial Relays.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 48 V |
| Contact material | Ag/Au flash gold plated |
| Number and type of contacts | 1 CO |
| Rated load AC1 | 8 A / 250 V AC |
| Rated load DC1 | 8 A / 30 V DC |
| Rated switching voltage | 250 V AC |
| Connection | PCB mounting |
| Depth (mm) | 28,5 |
| Width (mm) | 10,1 |
| Height (mm) | 12,5 |
| Weight (kg) | 0,008 |
| ETIM class | EC001437 |
| Relay type | RM12N |
| Enclosure protection | IP 40 |
