Relpol
SKU:PIR6WBT-1Z-115VAC-T

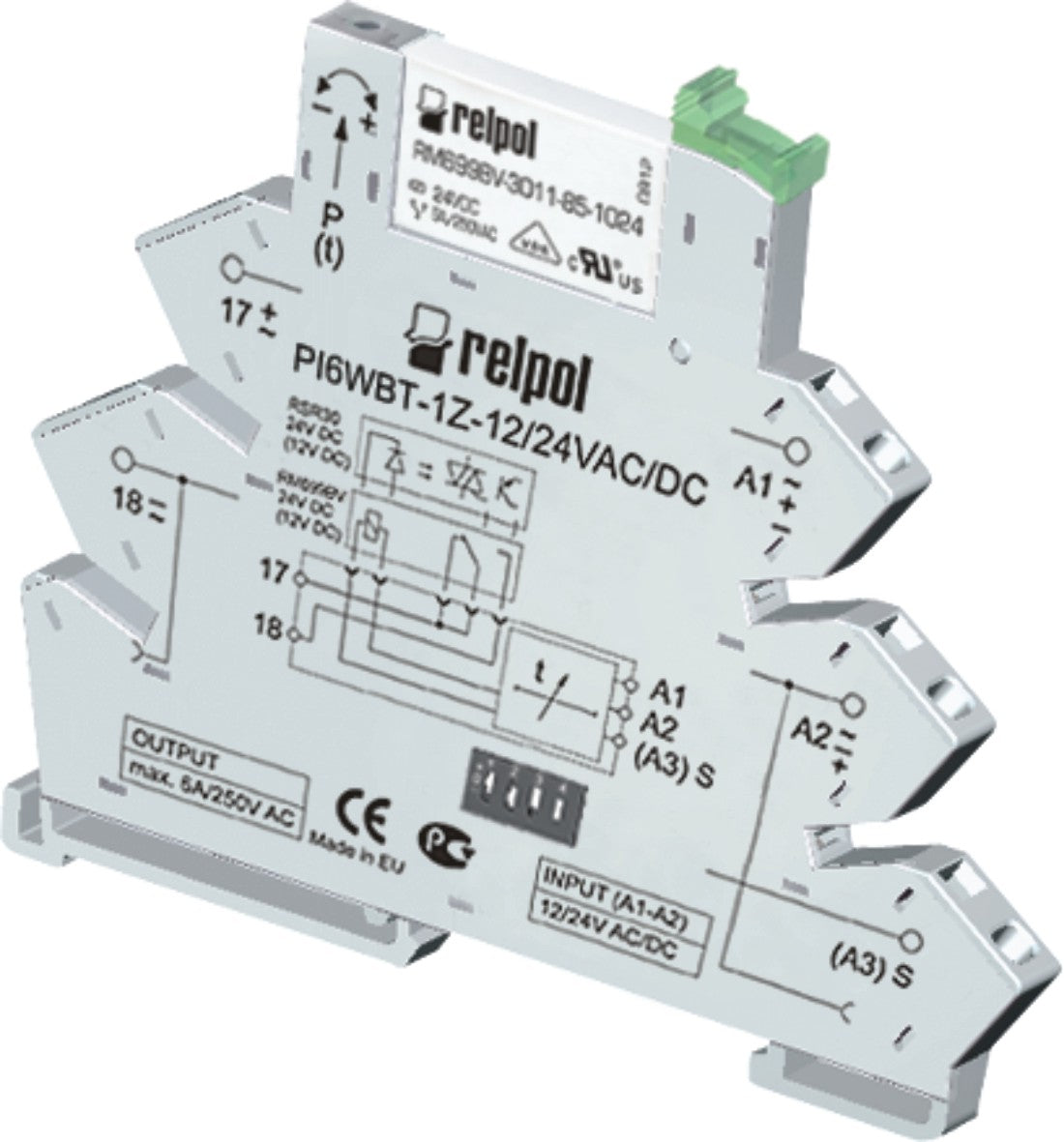

Relpol PIR6WBT-1Z-115VAC-T – Time Relays
Relpol PIR6WBT-1Z-115VAC-T – Time Relays
Price on request
Koszt wysyłki obliczony przy realizacji zakupu.
Relpol PIR6WBT-1Z-115VAC-T. Time Relays.
Technical specifications
| Type of coil supply | AC |
|---|---|
| Coil voltage | 115 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 NO |
| Rated load AC1 | 1 A/ 240 V AC |
| Rated switching voltage | 240 V AC |
| Connection | 35 mm DIN rail mounting |
| Depth (mm) | 98,5 |
| Width (mm) | 6,2 |
| Height (mm) | 85,5 |
| Weight (kg) | 0,05 |
| ETIM class | EC001439 |
| Version | niestandardowe |
| Relay type | PIR6WBT |
| Enclosure protection | IP 20 |
| Time ranges | 1 s; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
