Pizzato
SKU:ST DD210M0.1-E0T
ST DD210M0.1-E0T
ST DD210M0.1-E0T
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

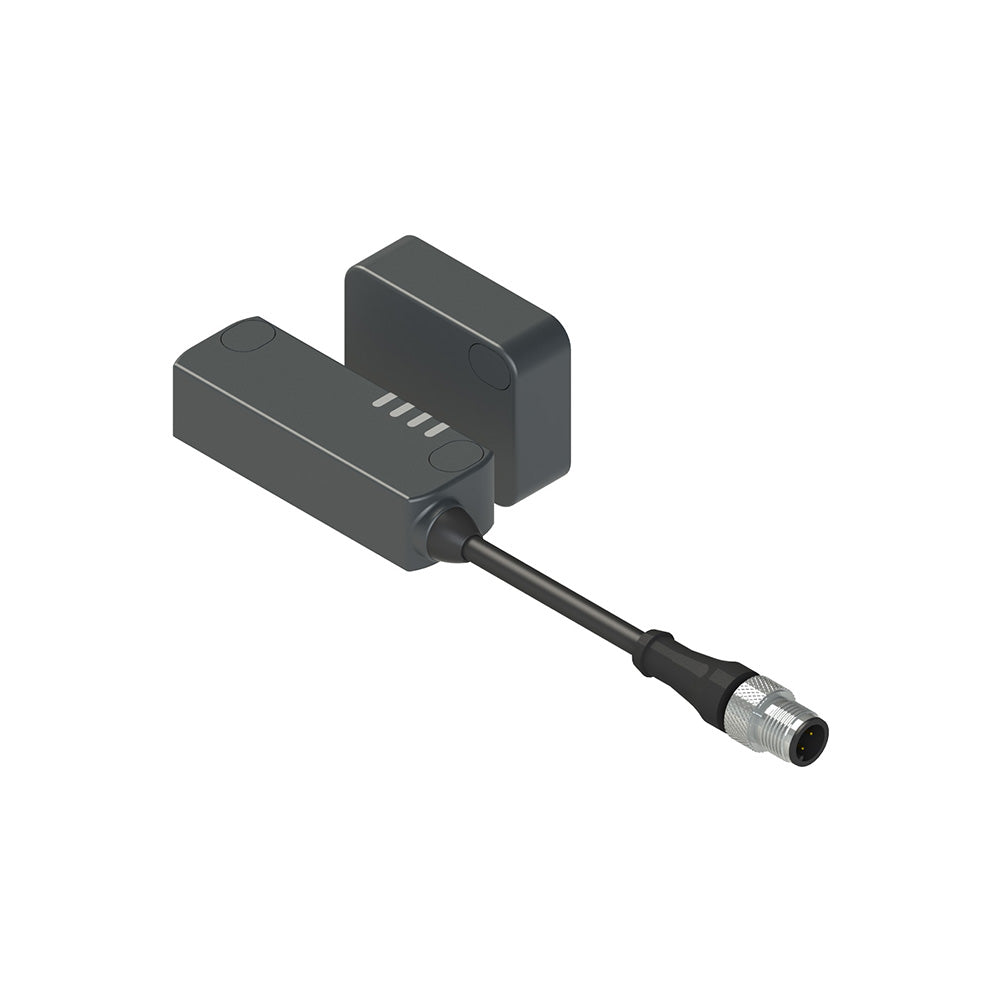

ST D series safety sensor, Housing: Technopolymer housing with output connection from right, ST D series, Inputs and outputs : 2 safety outputs OS1-OS2, ; 1 signalling output O3, Power: 24 Vdc, Type of cable or connector: PVC cable with M12 connector, Actuator coding level: Low coding level, Actuator actuation distance: Actuation distance 20 mm, Actuator design: Dimensions 40x50x16 mm, front fixing (E), Ambient temperature: From -25 to +70 °C, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | ST DD210M0.1-E0T |
|---|---|
| EAN | 8018851532252 |
| Minimum order quantity | 1 |
| Weight | 116 g |
| Customs tariff number | 85369095 |
| Product range | ST D/E/L - SM D/E/L RFID sensors |
| ETIM class | EC002544 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
