Pizzato
SKU:NF B020AE-DMK
NF B020AE-DMK
NF B020AE-DMK
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

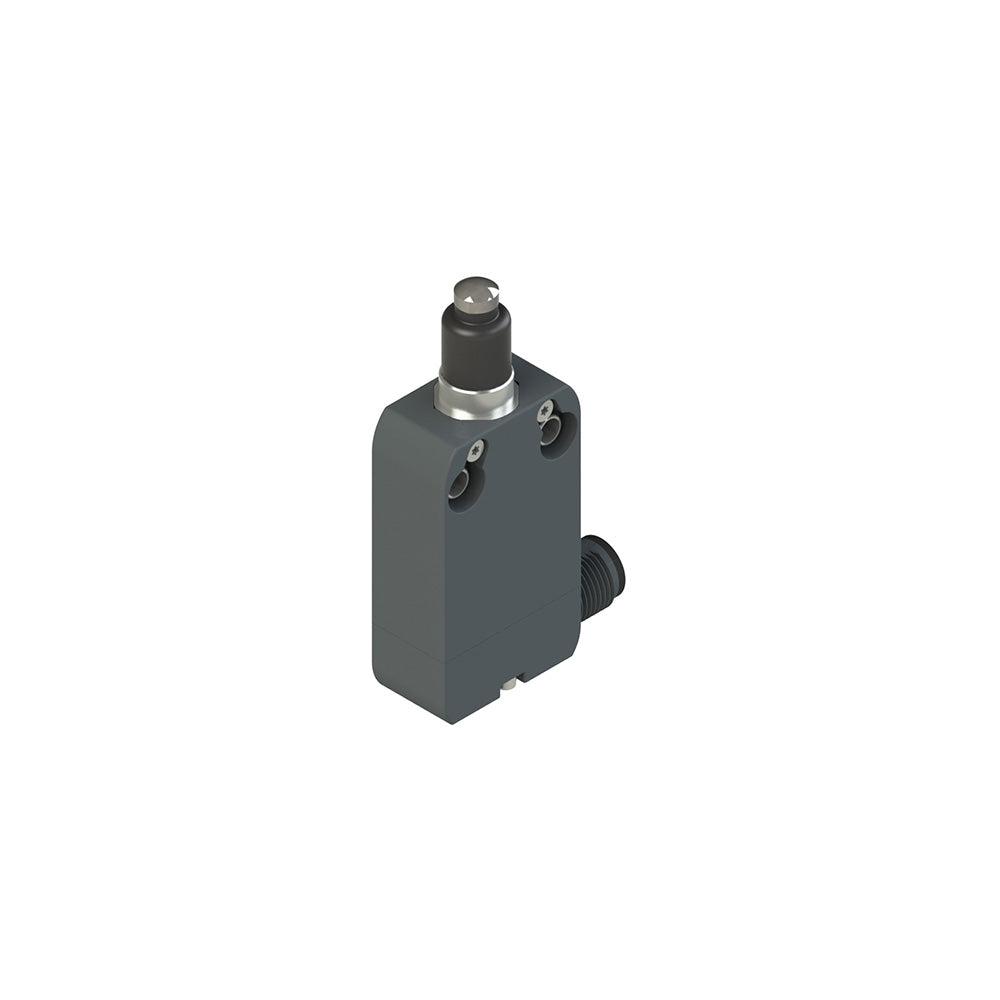

Modular prewired switch wtih plunger with external rubber gasket, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Technopolymer housing, 20 mm fixing points, Contact block: 2NC snap action (B02), Head: Plunger with external rubber gasket, Kind of connection: Technopolymer connector M12 from right 4 poles, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NF B020AE-DMK |
|---|---|
| EAN | 8018851165436 |
| Minimum order quantity | 1 |
| Weight | 58 g |
| Customs tariff number | 85369095 |
| Product range | NF |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
