Pizzato
SKU:NB G020HH-DN2W5
NB G020HH-DN2W5
NB G020HH-DN2W5
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

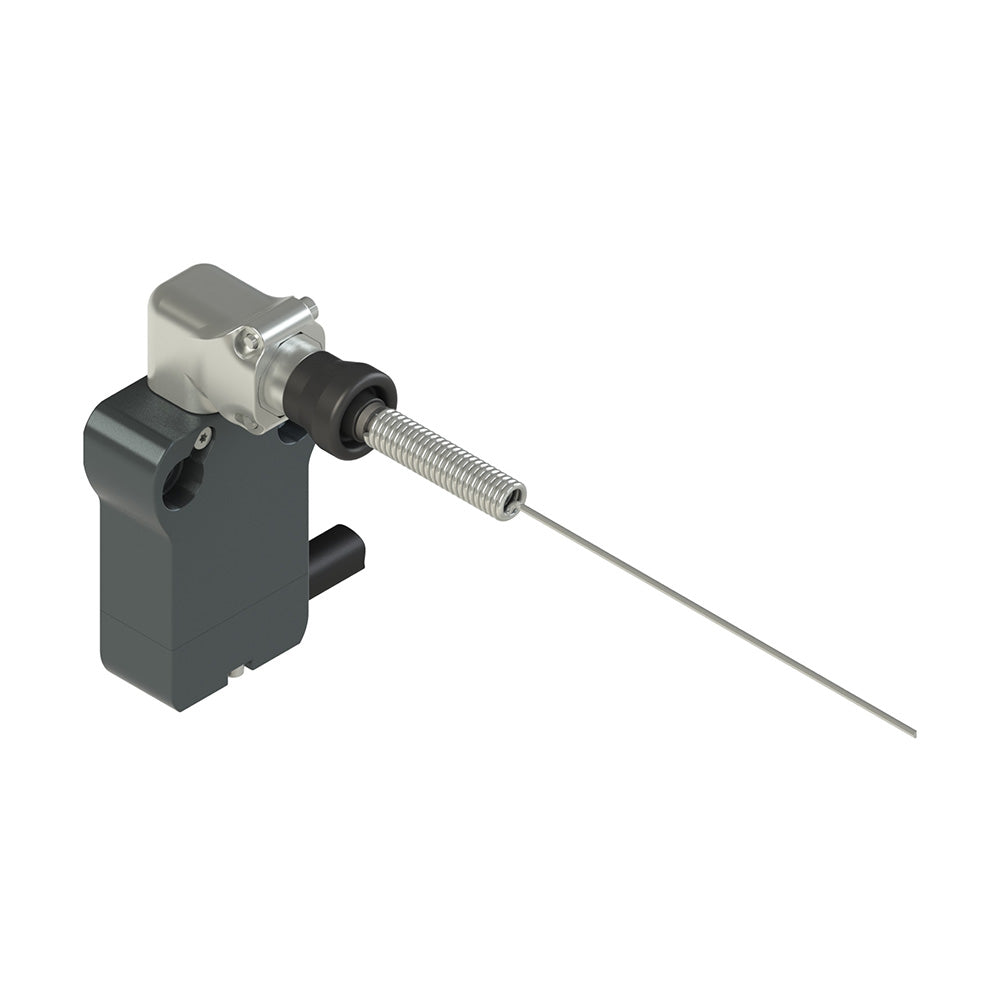

Modular prewired switch with spring rod with cat's whisker 90? transmission block, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 25 mm fixing points, Contact block: 2NC slow action (G02), Head: Spring rod with cat's whisker and with 90? transmission block, Kind of connection: Metal connector 2NC, Cable: PVC 5x0,75 mm?, lenght 2 m, 5 wires.
Technical specifications
| Manufacturer part number | NB G020HH-DN2W5 |
|---|---|
| EAN | 8018851183348 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
