Pizzato
SKU:NB B110BE-DMK
NB B110BE-DMK
NB B110BE-DMK
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

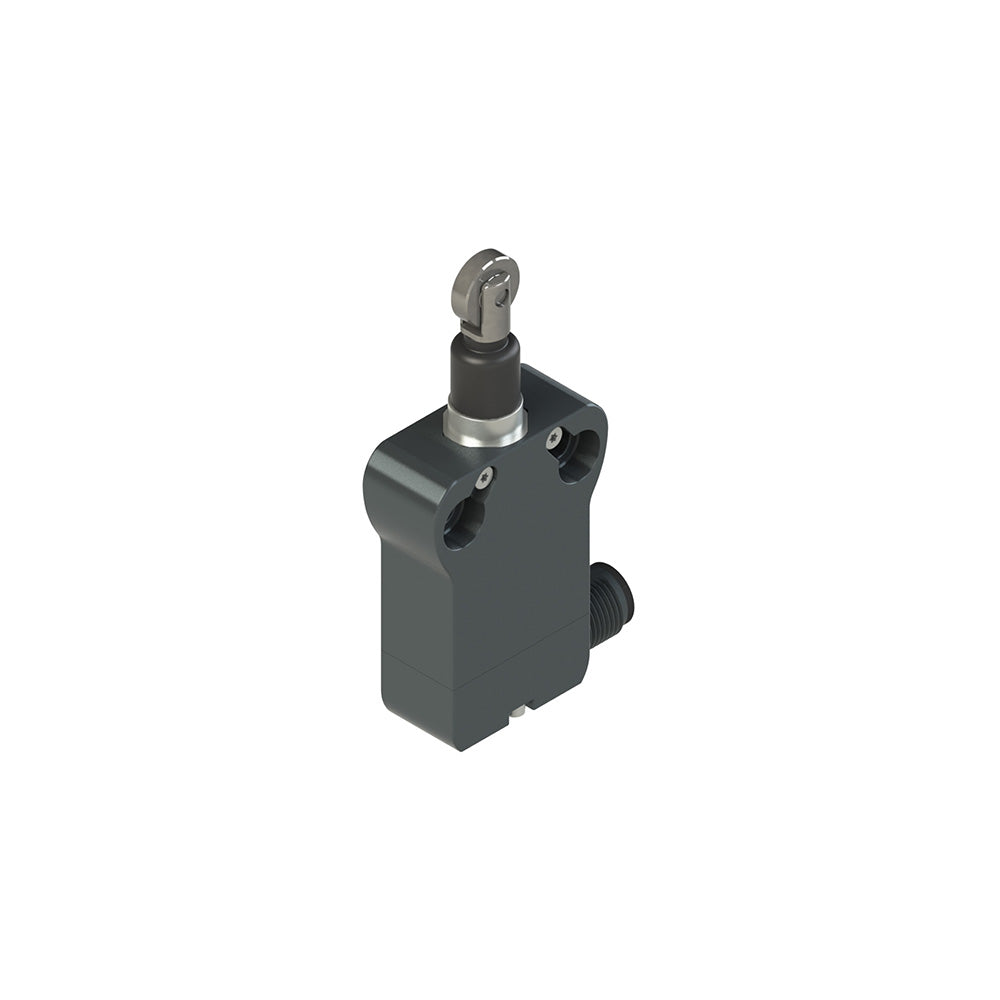

Modular prewired switch with roller plunger with rubber gasket, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 25 mm fixing points, Contact block: 1NO+1NC snap action (B11), Head: Roller plunger with external rubber gasket, Kind of connection: Metal connector M12 from right 5 poles, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NB B110BE-DMK |
|---|---|
| EAN | 8018851176043 |
| Minimum order quantity | 1 |
| Weight | 111 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
