Pizzato
SKU:NA L112LE-SMK
NA L112LE-SMK
NA L112LE-SMK
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

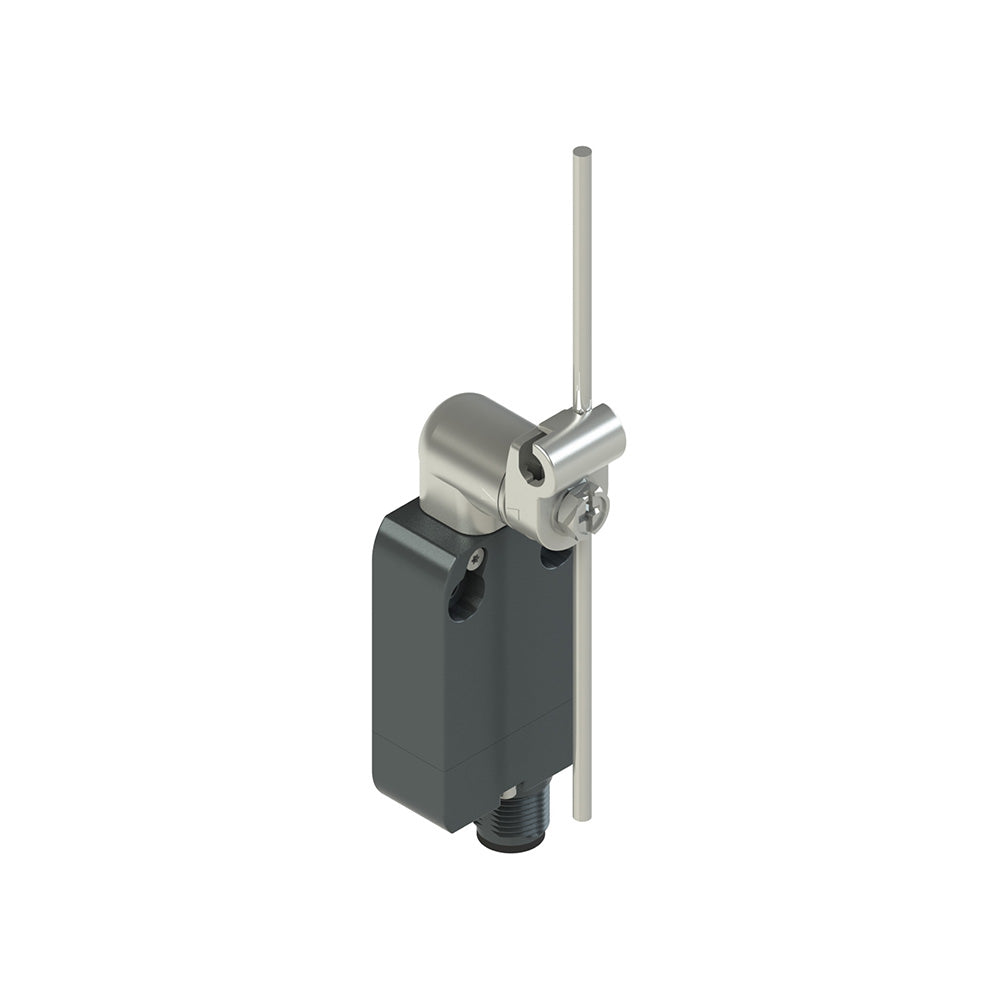

Modular prewired switch with metal revolving lever with adjustable stainless steel rod diam.3x125, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 20 mm fixing points, Contact block: 1NO+1NC slow action closer (L11), Head: Metal head for actuators with revolving lever, Kind of connection: Metal connector M12 from bottom 5 poles.
Technical specifications
| Manufacturer part number | NA L112LE-SMK |
|---|---|
| EAN | 8018851387272 |
| Minimum order quantity | 1 |
| Weight | 137 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
