Pizzato
SKU:FR 630-W3M2
FR 630-W3M2
FR 630-W3M2
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

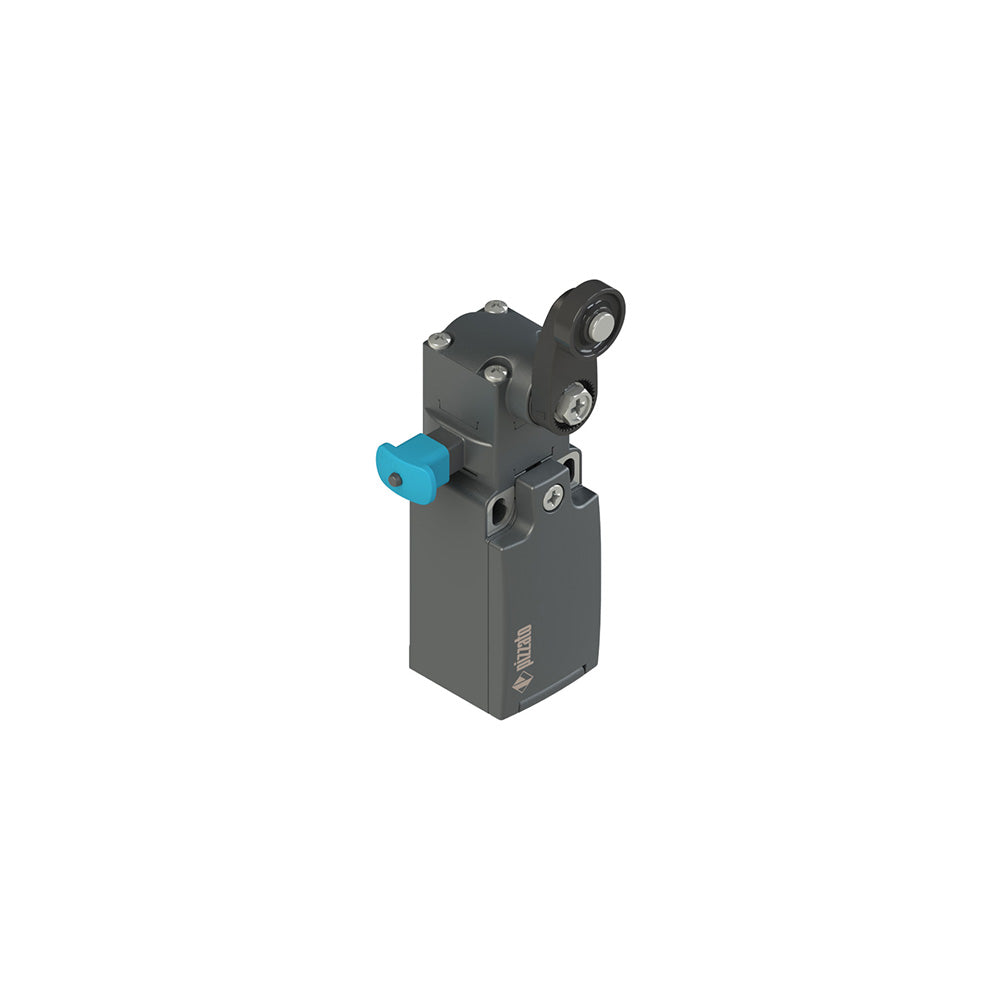

Position switch with roller lever and reset device, Housing: Technopolymer housing, one threaded M20x1,5 conduit entry (FR series), Contact block: 1NO+1NC slow action (B6), Head: With reset device, for rotating levers, Actuator: Rotating plastic lever with technopolymer roller, 18 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 630-W3M2 |
|---|---|
| EAN | 8018851146107 |
| Minimum order quantity | 1 |
| Weight | 105 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
