Pizzato
SKU:FR 276
FR 276
FR 276
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

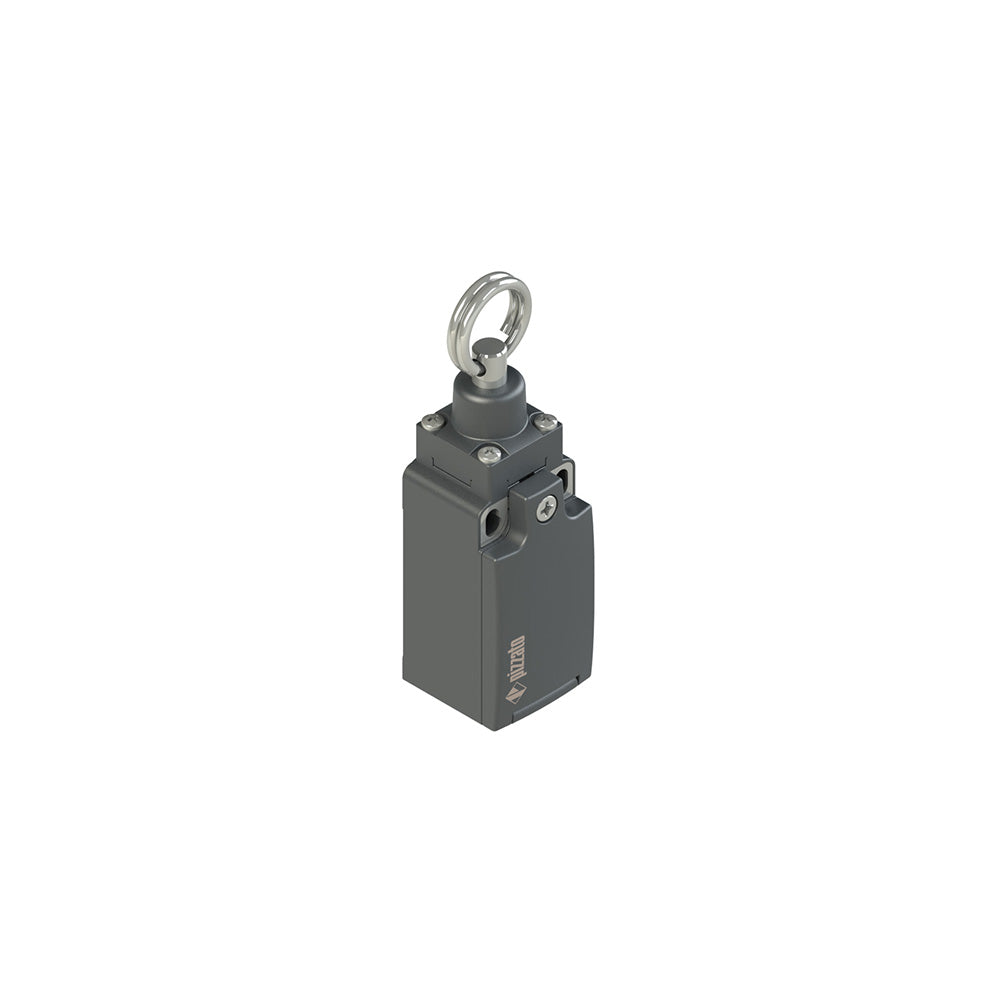

Position switch for rope actuation, Housing: Technopolymer housing, one threaded PG 13,5 conduit entry (FR series), Contact block: 2x(1NO-1NC) snap action (B2), Head: For rope actuation, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Note: Actuator 76 in rest position keep contact block activated. Consequently all NO and NC contacts are inverted in rest position.
Technical specifications
| Manufacturer part number | FR 276 |
|---|---|
| EAN | 8018851082429 |
| Minimum order quantity | 1 |
| Weight | 102 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
