Pizzato
SKU:FR 1656-XM2V38
FR 1656-XM2V38
FR 1656-XM2V38
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

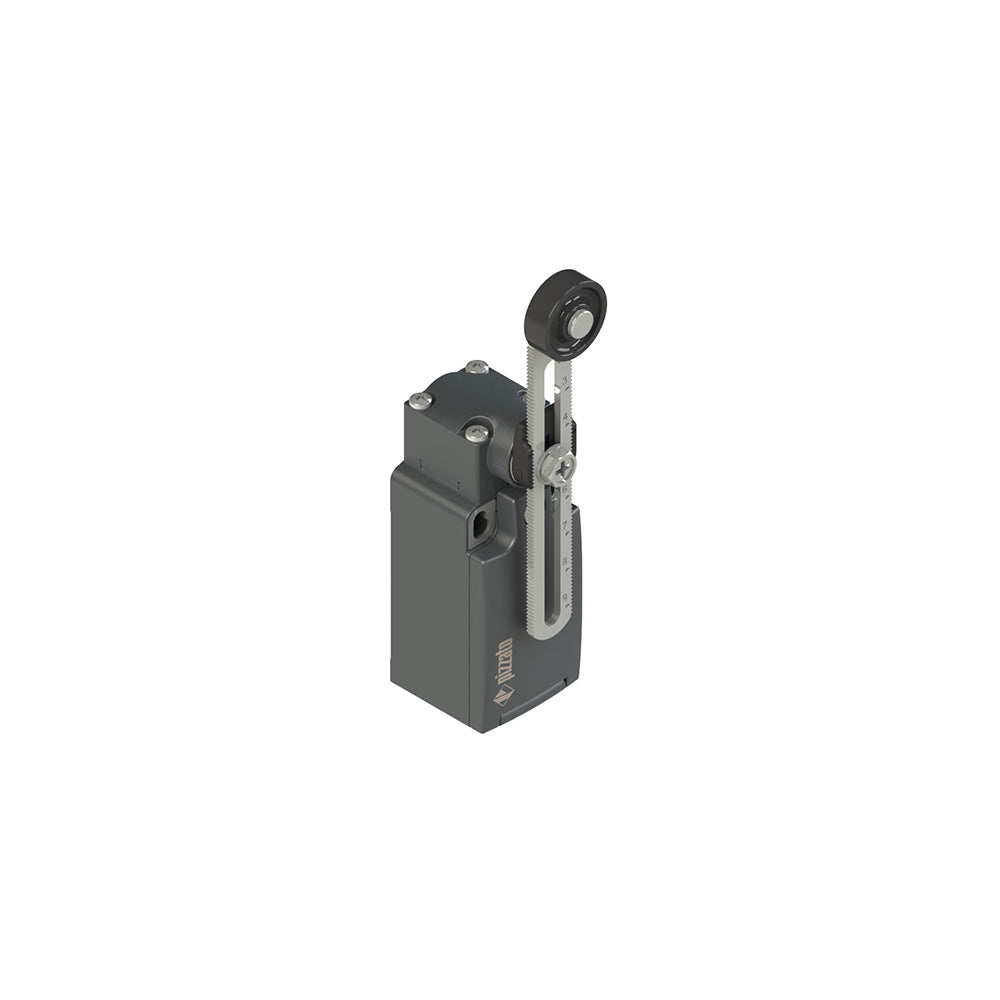

Position switch with adjustable roller lever, Housing: Technopolymer housing, one threaded M20x1,5 conduit entry and external parts in stainless steel (FR series), Contact block: 2NC slow action, independent contacts (B16), Head: For rotating levers with external parts in stainless steel for 2NC contack blocks, slow action independent, Actuator: With adjustable roller lever with external parts in stainless steel, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | FR 1656-XM2V38 |
|---|---|
| EAN | 8018851517709 |
| Minimum order quantity | 1 |
| Weight | 99 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
