Pizzato
SKU:FM 1455-M2
FM 1455-M2
FM 1455-M2
Availability: Ships in 2–3 weeks
Nie można załadować gotowości do odbioru

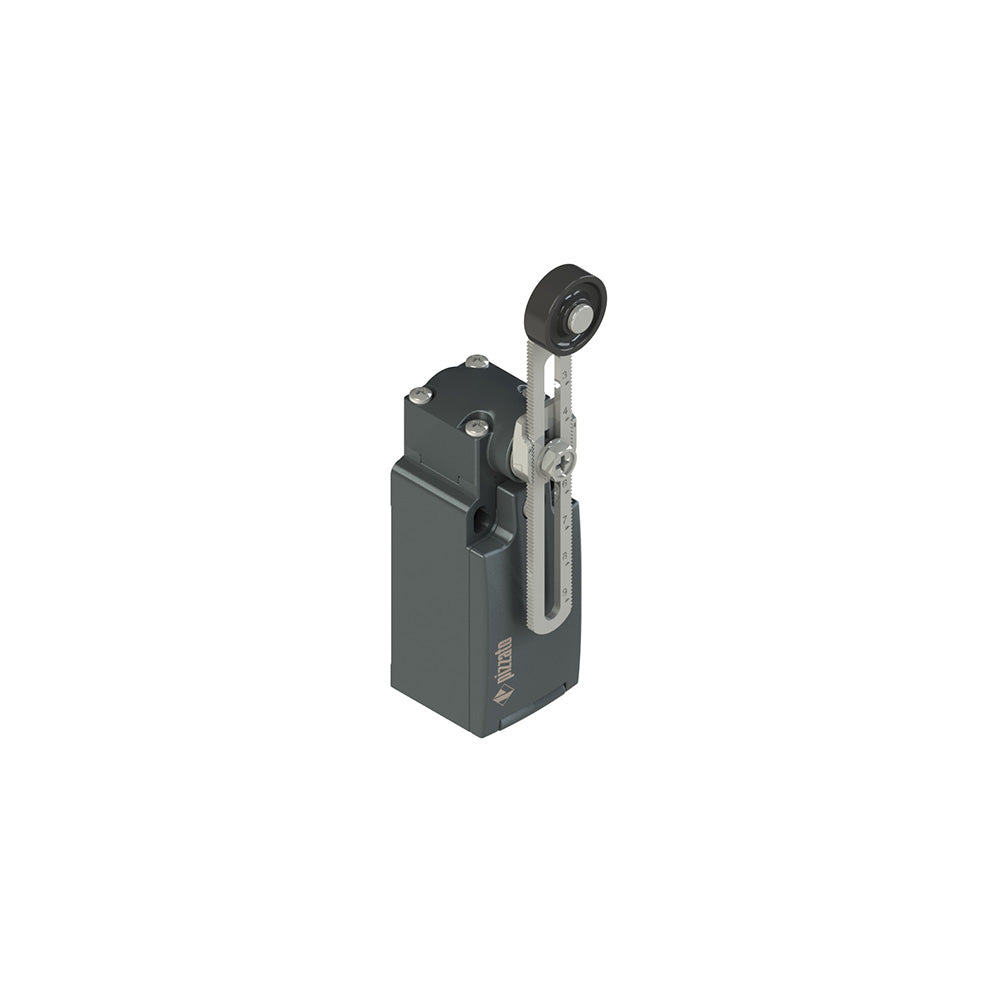

Position switch with adjustable lever and roller, Housing: Metal housing, one threaded M20x1,5 conduit entry (FM series), Contact block: 2NC slow action, shifted contacts (B14), Head: For rotating levers, Actuator: With adjustable technopolymer roller lever, 20 mm diameter, Protection degree: IP67 according to EN 60529, Positive opening: Yes (with lever adjusted to maximum length).
Technical specifications
| Manufacturer part number | FM 1455-M2 |
|---|---|
| EAN | 8018851350702 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | FM |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
