Relpol
SKU:RM40-3021-85-1009

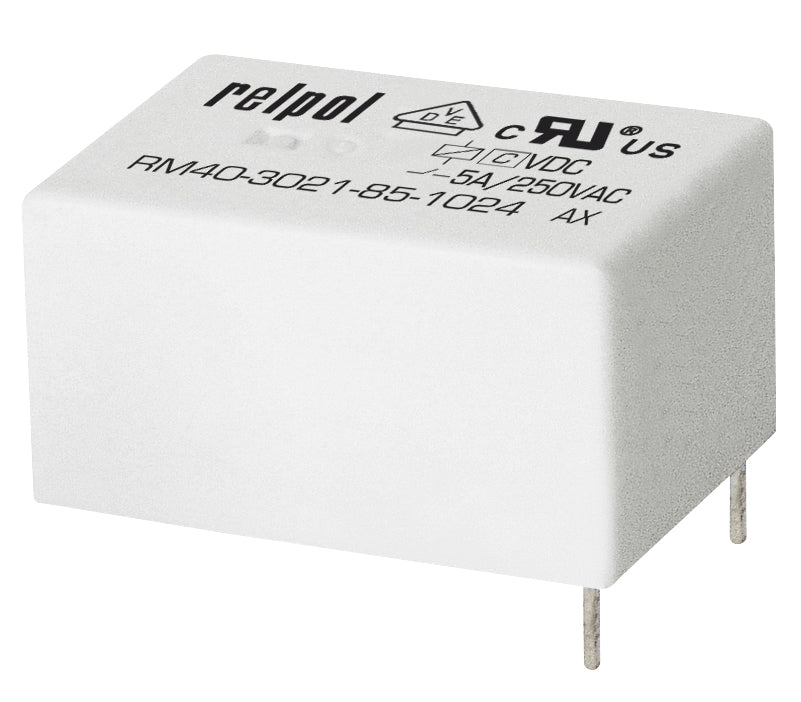

Relpol RM40-3021-85-1009 – Industrial Relays
Relpol RM40-3021-85-1009 – Industrial Relays
Price on request
Spese di spedizione calcolate al check-out.
Miniature relays RM40-3021-85-1009, 1 NO. Contact material: AgSnO2. Voltage coil 9 V DC. Rated load AC1 8 A / 250 V AC. Mounting: for PCB. Cover protection category IP 67.
Technical specifications
| Type of coil supply | DC |
|---|---|
| Coil voltage | 9 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 NO |
| Rated load AC1 | 8 A / 250 V AC |
| Rated load DC1 | 8 A / 30 V DC |
| Rated switching voltage | 250 V AC |
| Mounting | for PCB |
| Depth | 20 |
| Width mm | 10 |
| Height mm | 10,5 |
| Weight kg | 0,006 |
| ETIM class | EC001437 |
| Execution | niestandardowe |
| Relay type | RM40 |
| Ip cover | IP 67 |
