Relpol
SKU:PIR6W-1P-230VAC/DC-01 (CE)

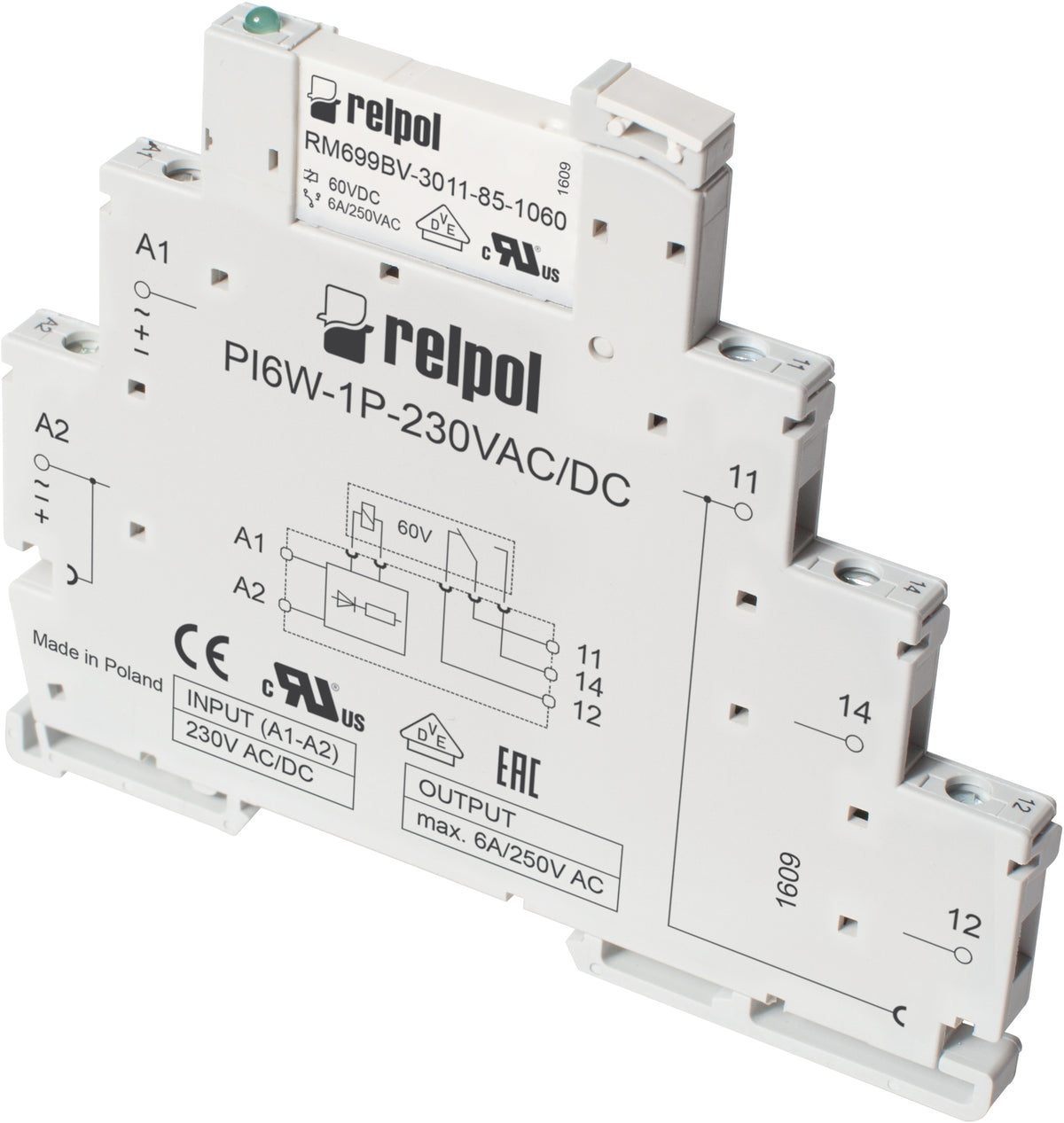

Relpol PIR6W-1P-230VAC/DC-01 (CE) – Interface Relays
Relpol PIR6W-1P-230VAC/DC-01 (CE) – Interface Relays
Price on request
Spese di spedizione calcolate al check-out.
Relpol PIR6W-1P-230VAC/DC-01 (CE). Interface Relays.
Technical specifications
| Type of coil supply | AC/DC |
|---|---|
| Coil voltage | 230 V |
| Contact material | AgSnO2/Au hard gold plated |
| Number and type of contacts | 1 CO |
| Rated load AC1 | 0,05 A / 30 V AC |
| Rated load DC1 | 0,05 A / 36 V DC |
| Rated switching voltage | 30 V AC |
| Connection | 35 mm DIN rail mounting |
| Depth (mm) | 98,5 |
| Width (mm) | 6,2 |
| Height (mm) | 85,5 |
| Weight (kg) | 0,045 |
| ETIM class | EC001437 |
| Relay type | PIR6W-1P |
| Enclosure protection | IP 20 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
