Pizzato
SKU:ST HE210MK-H1TE
ST HE210MK-H1TE
ST HE210MK-H1TE
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

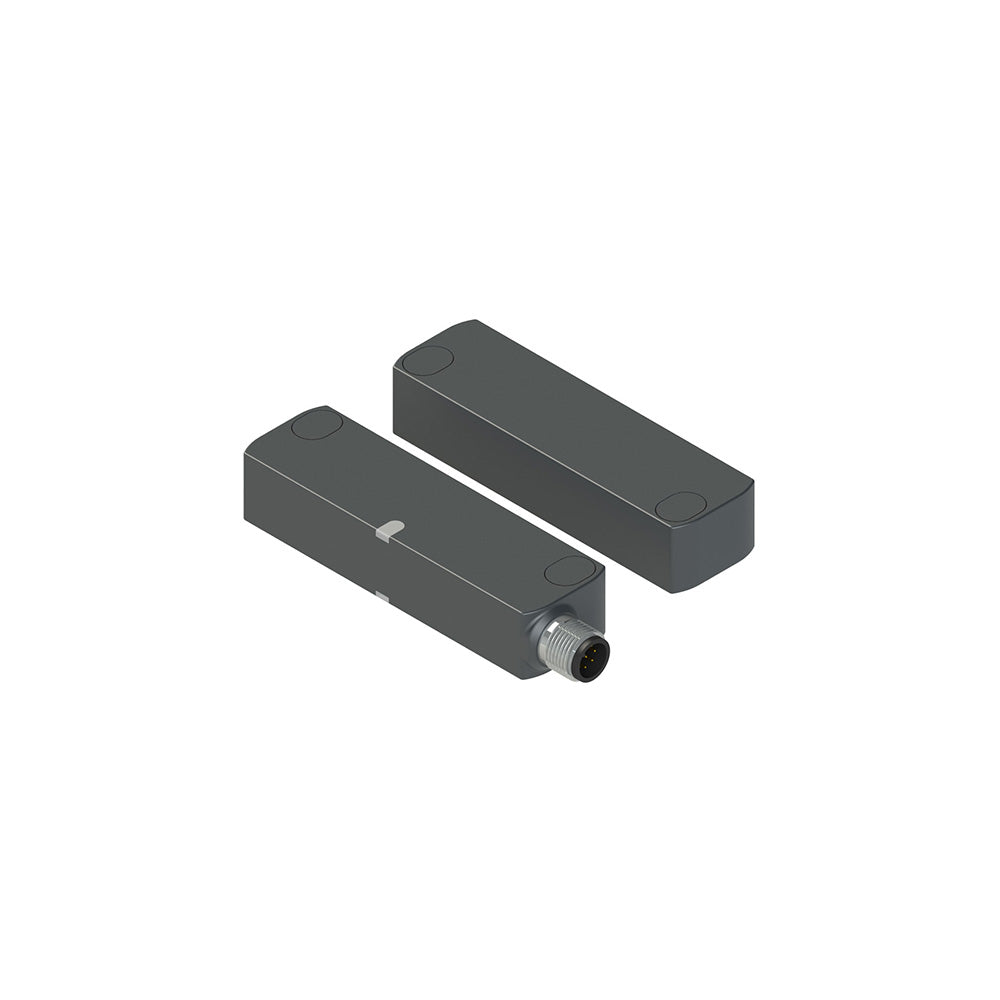

ST H series safety sensor, Housing: Technopolymer housing, ST H series, with permanent magnet, Inputs and outputs : 2 safety outputs OS1-OS2, ; 1 signalling output O3, Power: 24 Vdc, Type of cable or connector: Integrated M12 stainless steel connector, Actuator coding level: High coding level, Actuator actuation distance: Actuation distance 11 mm, Permanent magnet holding force: With magnet, holding force 25 N (E), Actuator design: Dimensions 90x25x18 mm, lateral fixing (H), Ambient temperature: From -25 to +70 °C, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | ST HE210MK-H1TE |
|---|---|
| EAN | 8018851541803 |
| Minimum order quantity | 1 |
| Weight | 189 g |
| Customs tariff number | 85369095 |
| Product range | ST H - SM H RFID sensors |
| ETIM class | EC002544 |
