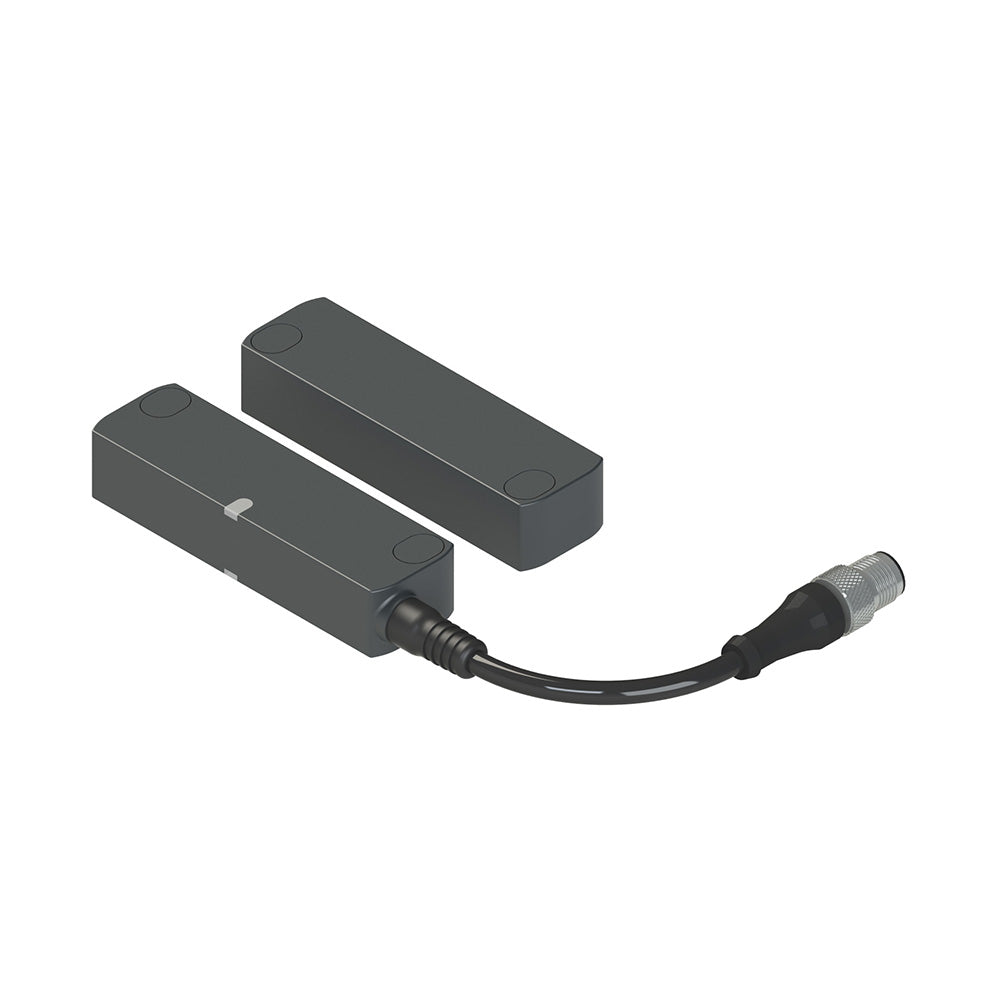

ST HD420M0.2-H1T

ST H series safety sensor, Housing: Technopolymer housing, ST H series, Inputs and outputs : 2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3,; 1 programming input I3, Power: 24 Vdc, Type of cable or connector: PVC cable with M12 connector, Actuator coding level: High coding level, Actuator actuation distance: Actuation distance 11 mm, Permanent magnet holding force: Without magnet, Actuator design: Dimensions 90x25x18 mm, lateral fixing (H), Ambient temperature: From -25 to +70 °C, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.

Technical specifications

Documentation

• English catalogue / technical documentation 1
