Pizzato
SKU:ST DD310N5-D0T
ST DD310N5-D0T
ST DD310N5-D0T
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

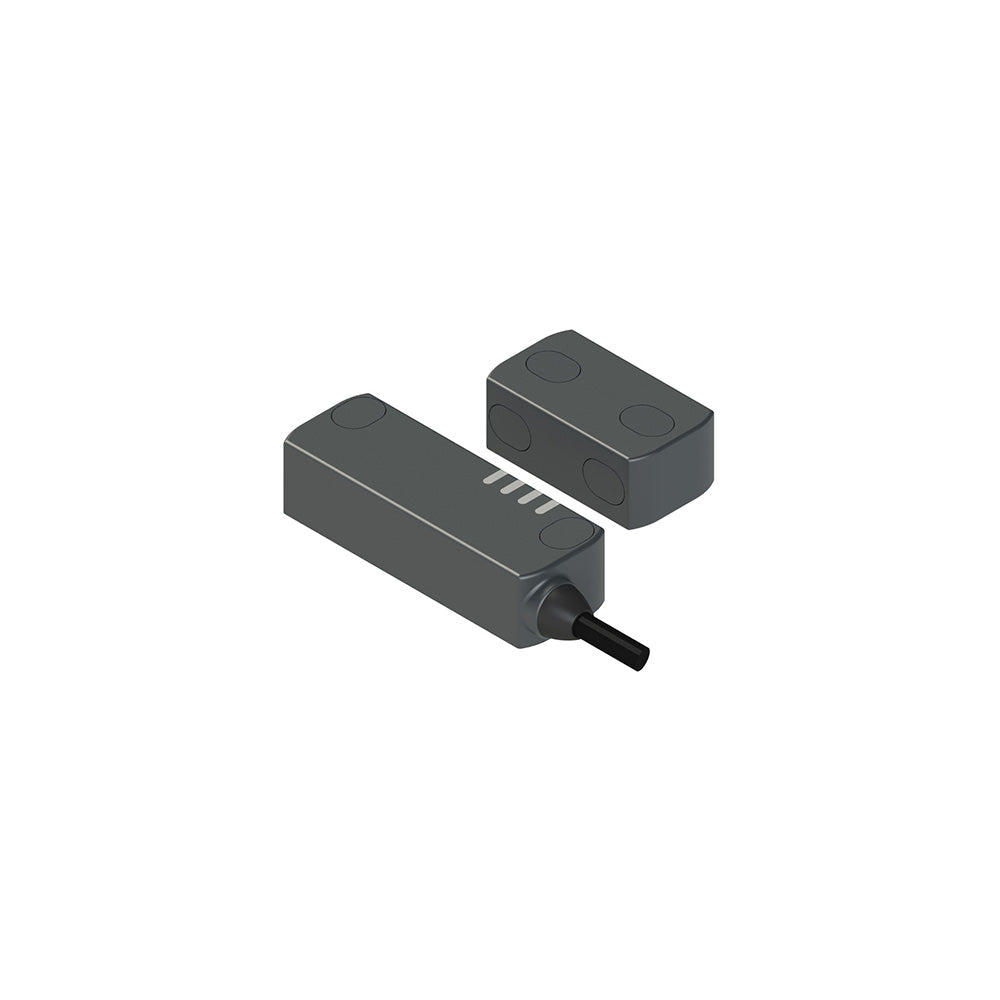

ST D series safety sensor, Housing: Technopolymer housing with output connection from right, ST D series, Inputs and outputs : 2 safety inputs IS1-IS2, ; 2 safety outputs OS1-OS2, ; 1 signalling output O3, Power: 24 Vdc, Type of cable or connector: PVC cable, Actuator coding level: Low coding level, Actuator actuation distance: Actuation distance 12 mm, Actuator design: Dimensions 45x25x18 mm, front and side fixing (D), Ambient temperature: From -25 to +70 °C, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | ST DD310N5-D0T |
|---|---|
| EAN | 8018851258770 |
| Minimum order quantity | 1 |
| Weight | 483 g |
| Customs tariff number | 85369095 |
| Product range | ST D/E/L - SM D/E/L RFID sensors |
| ETIM class | EC002544 |
