Pizzato
SKU:NF G110BE-DN2
NF G110BE-DN2
NF G110BE-DN2
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

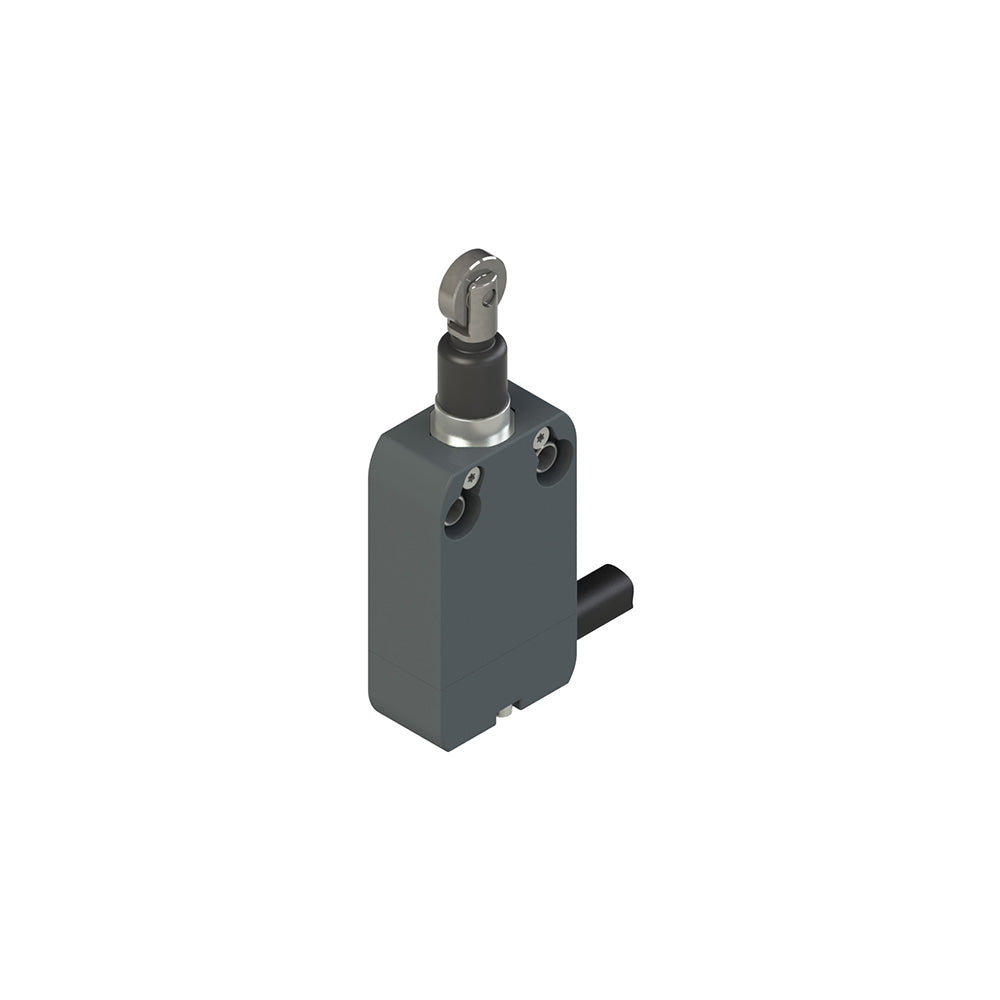

Modular prewired switch with roller plunger with rubber gasket, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Technopolymer housing, 20 mm fixing points, Contact block: 1NO+1NC slow action (G11), Head: Roller plunger with external rubber gasket, Kind of connection: Technopolymer connector 1NO+1NC, Cable: PVC 4x0,75 mm?, lenght 2 m, 4 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NF G110BE-DN2 |
|---|---|
| EAN | 8018851153631 |
| Minimum order quantity | 1 |
| Weight | 236 g |
| Customs tariff number | 85369095 |
| Product range | NF |
| ETIM class | EC000030 |
