Pizzato
SKU:NF B120BB-DN5
NF B120BB-DN5
NF B120BB-DN5
Prezzo di listino
€31,85 EUR
Prezzo di listino
Prezzo scontato
€31,85 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

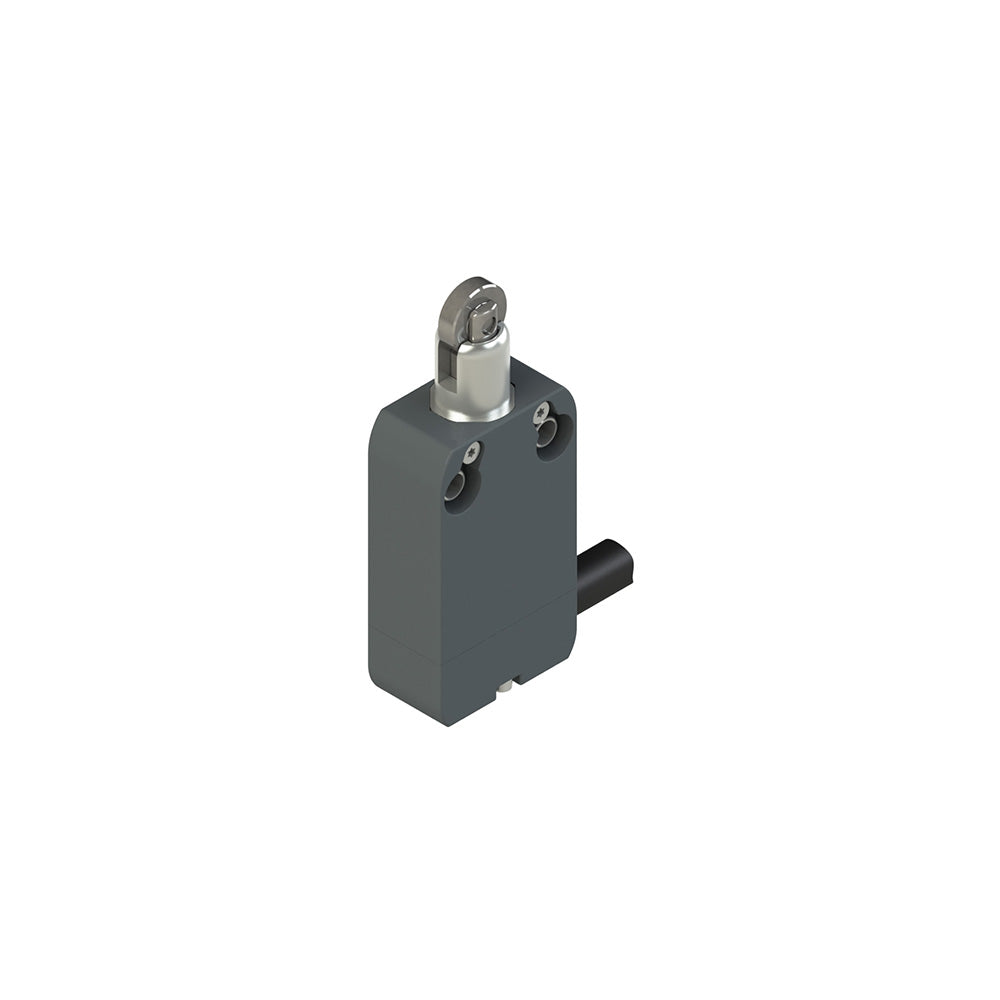

Modular prewired switch with roller plunger, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Technopolymer housing, 20 mm fixing points, Contact block: 1NO+2NC snap action (B12), Head: Roller plunger, Kind of connection: Technopolymer connector 1NO+2NC, Cable: PVC 6x0,5 mm?, lenght 5 m, 6 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NF B120BB-DN5 |
|---|---|
| EAN | 8018851156656 |
| Minimum order quantity | 1 |
| Weight | 415 g |
| Customs tariff number | 85369095 |
| Product range | NF |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
