Pizzato
SKU:NF B112KF-DN6
NF B112KF-DN6
NF B112KF-DN6
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

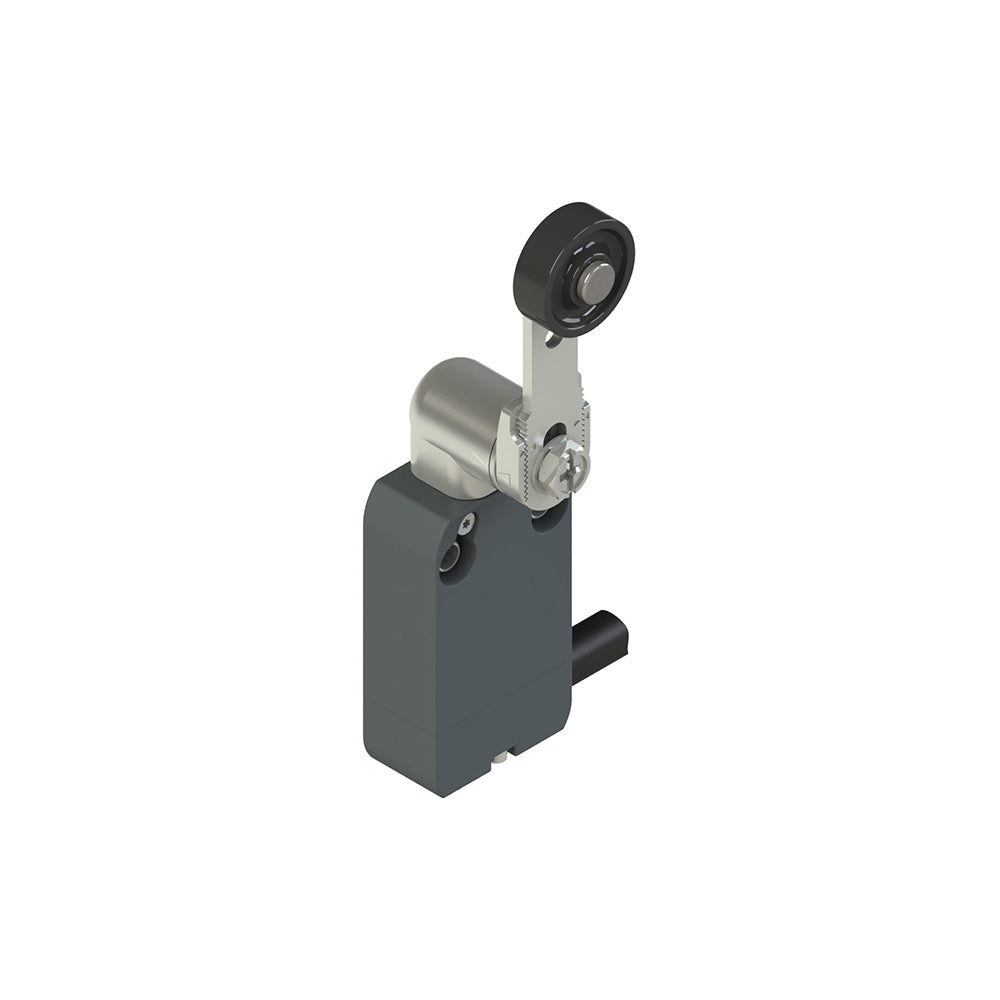

Modular prewired switch with adjustable straight metal revolving lever diam. 20 roller, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Technopolymer housing, 20 mm fixing points, Contact block: 1NO+1NC snap action (B11), Head: Metal head for actuators with revolving lever, Kind of connection: Technopolymer connector 1NO+1NC, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NF B112KF-DN6 |
|---|---|
| EAN | 8018851297472 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | NF |
| ETIM class | EC000030 |
