Pizzato
SKU:NA G022KP-SMK
NA G022KP-SMK
NA G022KP-SMK
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

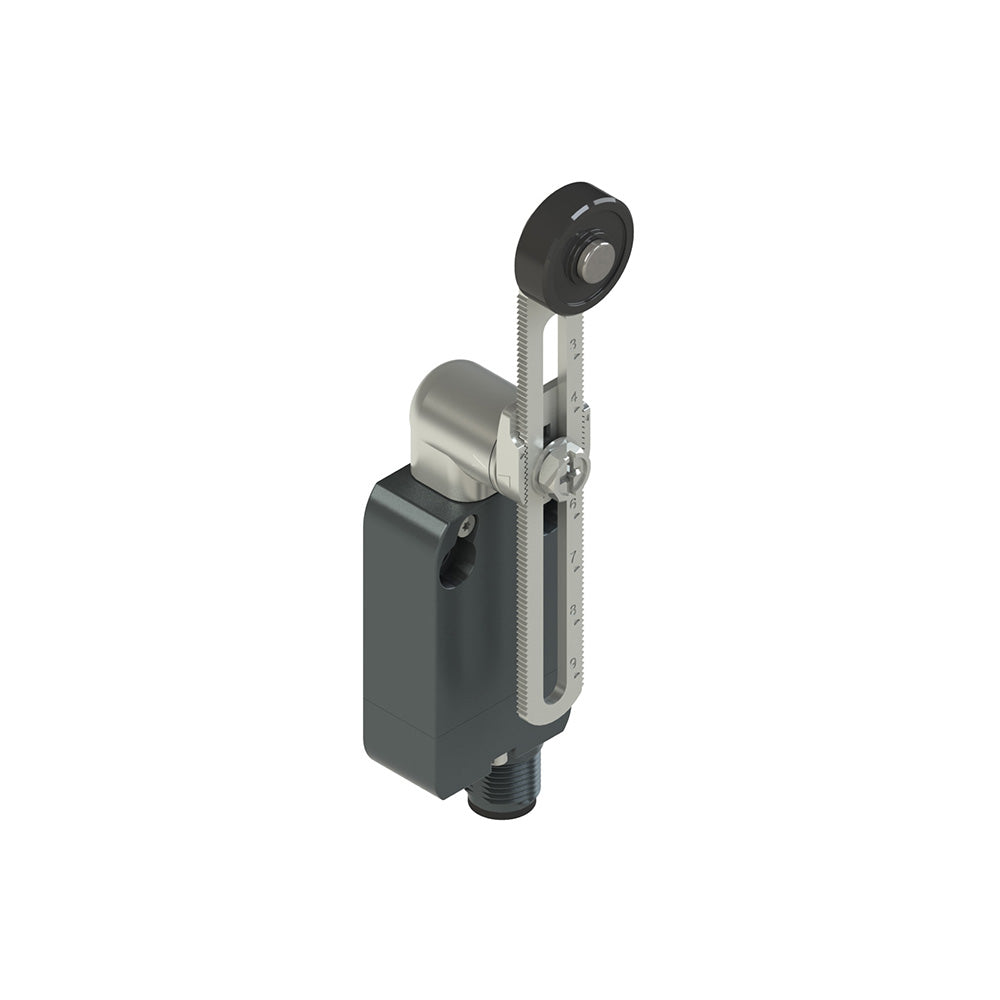

Modular prewired switch with adjustablelength straight metal revolving lever diam. 20 roller, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 20 mm fixing points, Contact block: 2NC slow action (G02), Head: Metal head for actuators with revolving lever, Kind of connection: Metal connector M12 from bottom 5 poles, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NA G022KP-SMK |
|---|---|
| EAN | 8018851239878 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
