Pizzato
SKU:MK H11R59
MK H11R59
MK H11R59
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

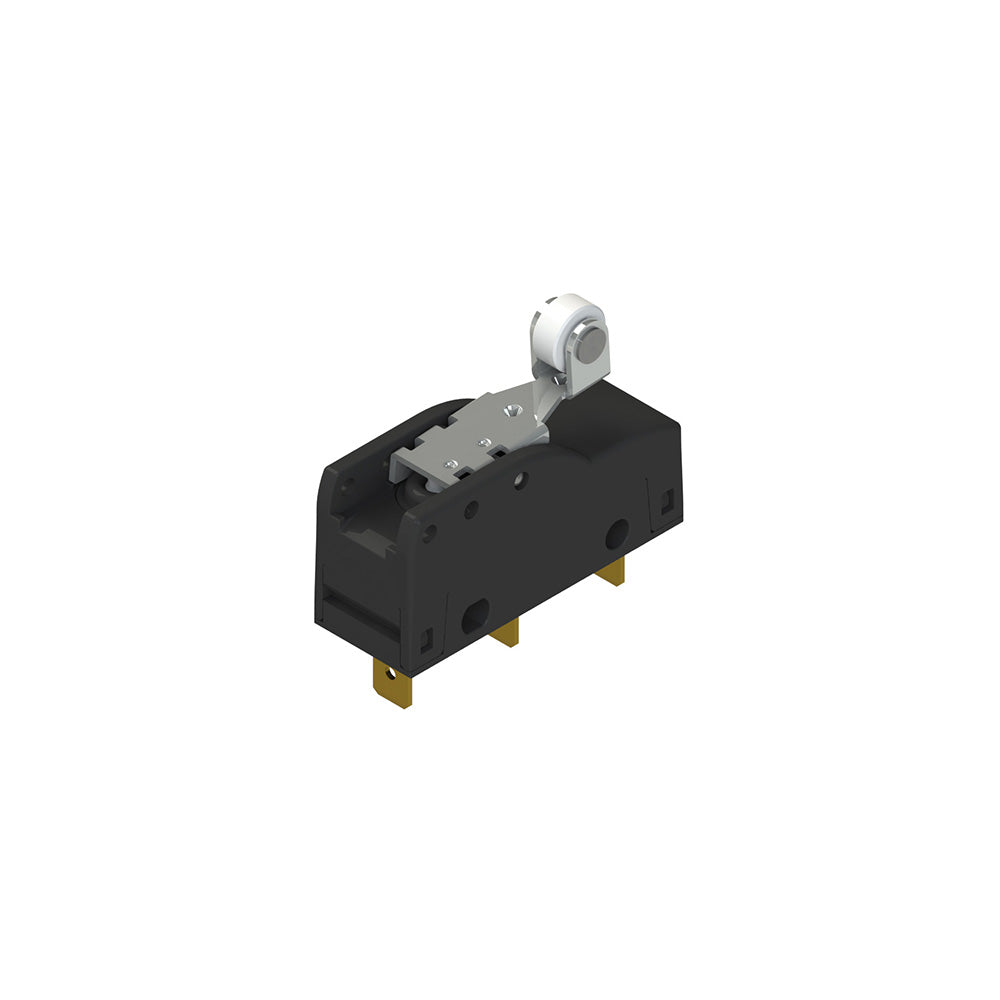

Microswitch with roller lever, Ambient temperature: From -25 °C to +85 °C, Housing: Technopolymer housing, Terminal type: Vertical faston, Contact block: 1NO+1NC changeover, Maximum protection degree: IP00 without terminal cover; IP20 with terminal cover VF C01, VF C03; IP40 with terminal cover VF MKCx1x, VF C02, Actuation type: Inverted action, Actuator: With roller lever (l= 17.8mm).
Technical specifications
| Manufacturer part number | MK H11R59 |
|---|---|
| EAN | 8018851321429 |
| Minimum order quantity | 1 |
| Weight | 40 g |
| Customs tariff number | 85369095 |
| Product range | MK |
| ETIM class | EC000030 |
