Pizzato
SKU:HP AA052F-KAMH15
HP AA052F-KAMH15
HP AA052F-KAMH15
Prezzo di listino
€66,11 EUR
Prezzo di listino
Prezzo scontato
€66,11 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

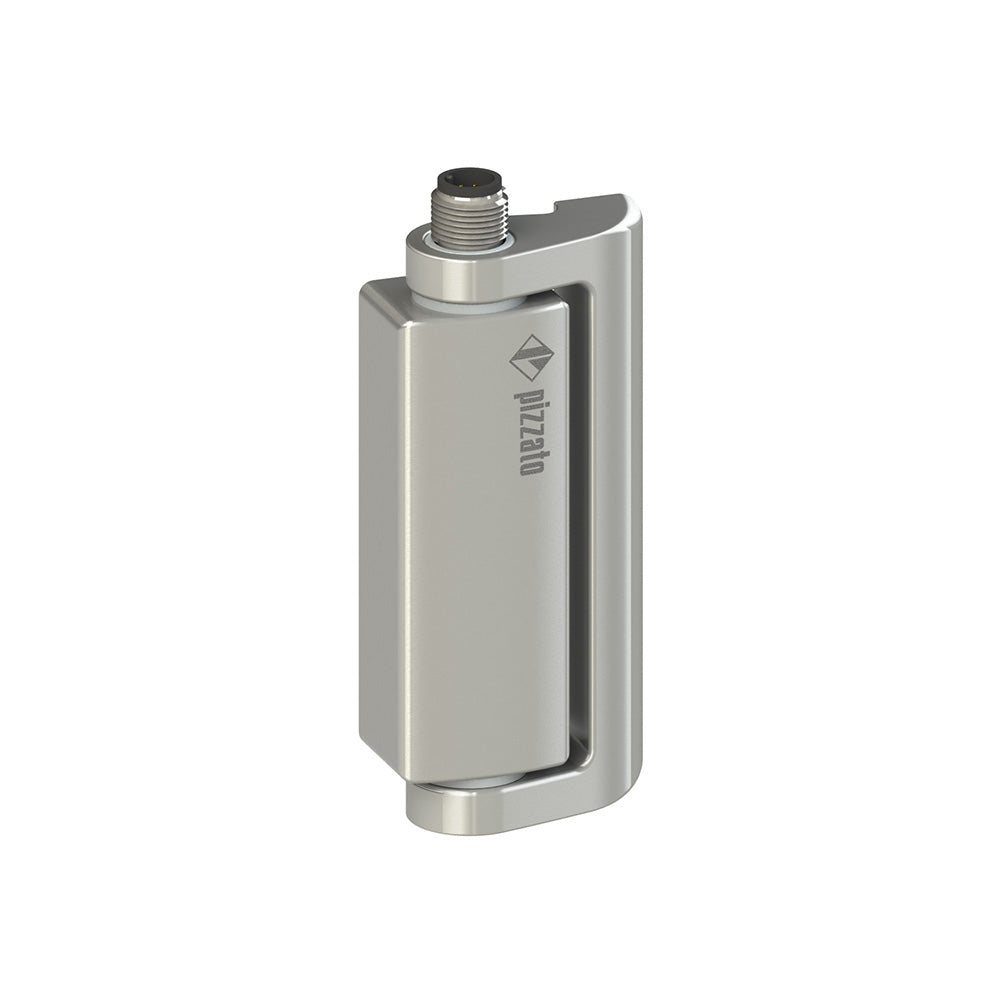

Safety hinge switch, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal body, cable output from top (100x45 mm movable part), Contact block: 1NO+2NC slow action (52F), Type of cable or connector: M12 connector, 8 poles for contact block with 3 contacts, Positive opening: Yes.
Technical specifications
| Manufacturer part number | HP AA052F-KAMH15 |
|---|---|
| EAN | 8018851255076 |
| Minimum order quantity | 1 |
| Weight | 339 g |
| Customs tariff number | 85369095 |
| Product range | HP - HC |
| ETIM class | EC002591 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
