Pizzato
SKU:FS 2996D024-F8M2
FS 2996D024-F8M2
FS 2996D024-F8M2
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

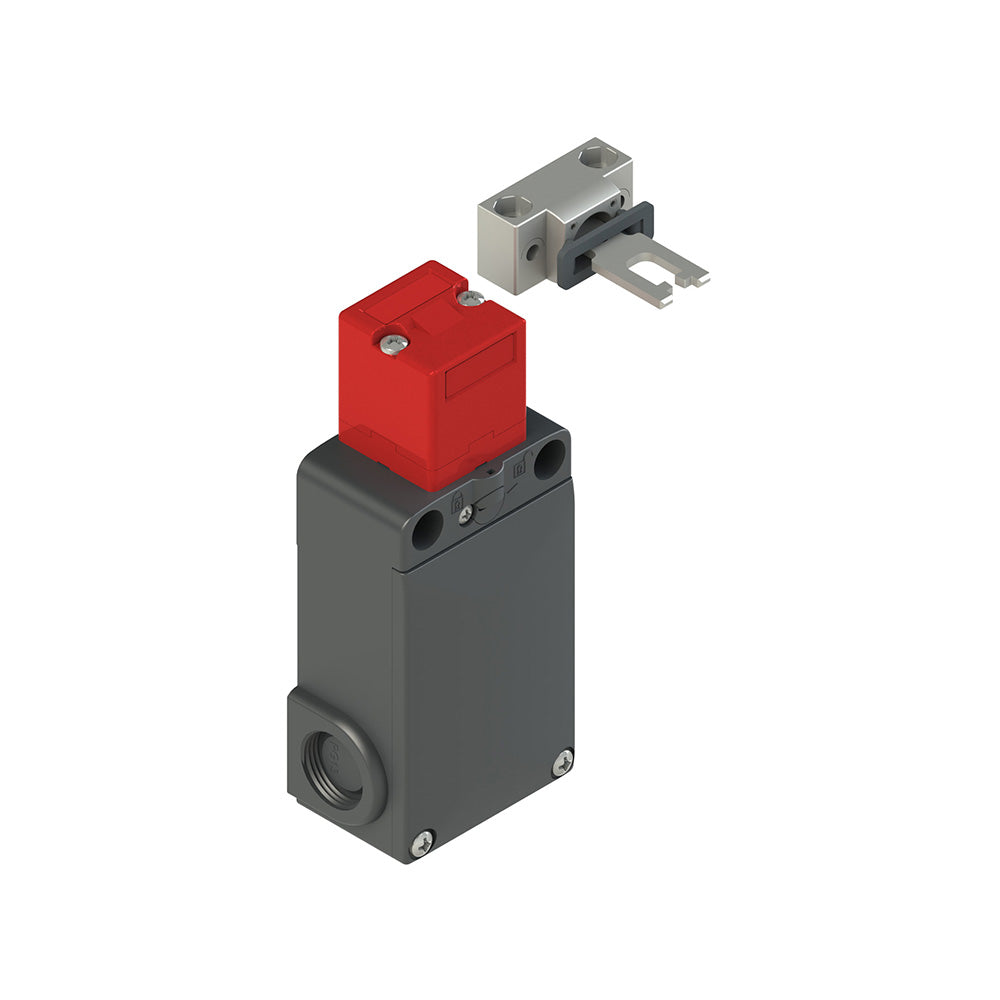

FS series safety switch with separate actuator with lock, Protection degree: IP67 according to EN 60529, Power: 24 Vac/dc (D working method), Housing: Technopolymer housing, three threaded M20x1,5 conduit entries, Contact block: 1NC moved by actuator and 2NC moved by solenoid, Head: Rotating head, Working method: D working method, locked actuator with de-energized solenoid, Actuator: Universal, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FS 2996D024-F8M2 |
|---|---|
| EAN | 8018851125126 |
| Minimum order quantity | 1 |
| Weight | 472 g |
| Customs tariff number | 85369095 |
| Product range | FS switches with solenoid |
| ETIM class | EC002593 |
