Pizzato
SKU:FS 1896D120-F1
FS 1896D120-F1
FS 1896D120-F1
Prezzo di listino
€96,10 EUR
Prezzo di listino
Prezzo scontato
€96,10 EUR
Spese di spedizione calcolate al check-out.
Quantità
Impossibile caricare la disponibilità di ritiro

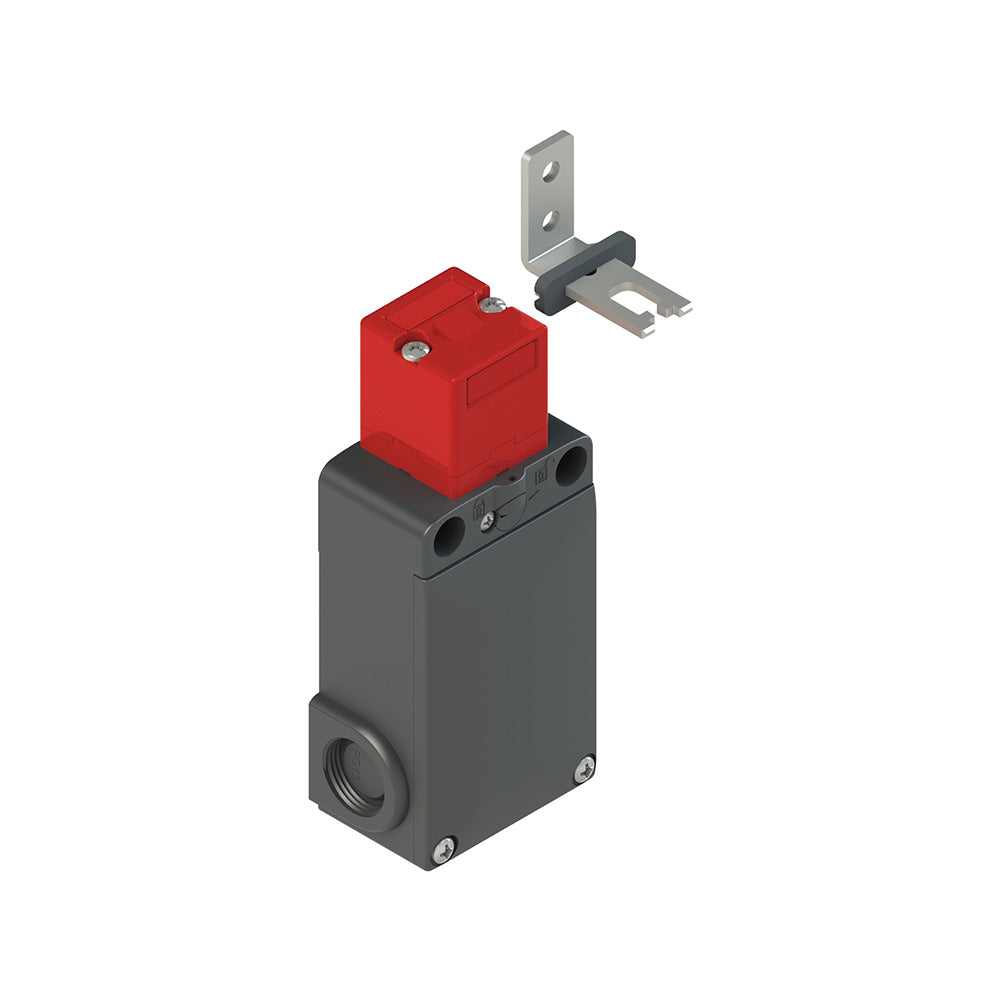

FS series safety switch with separate actuator with lock, Protection degree: IP67 according to EN 60529, Power: 120 Vac/dc, Housing: Technopolymer housing, three threaded PG 13,5 conduit entries, Contact block: 1NO+1NC moved by solenoid, Head: Rotating head, Working method: D working method, locked actuator with de-energized solenoid, Actuator: Angled, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FS 1896D120-F1 |
|---|---|
| EAN | 8018851099434 |
| Minimum order quantity | 1 |
| Weight | 426 g |
| Customs tariff number | 85369095 |
| Product range | FS switches with solenoid |
| ETIM class | EC002593 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
