Pizzato
SKU:FR 693-E3X
FR 693-E3X
FR 693-E3X
Prezzo di listino
€17,91 EUR
Prezzo di listino
Prezzo scontato
€17,91 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

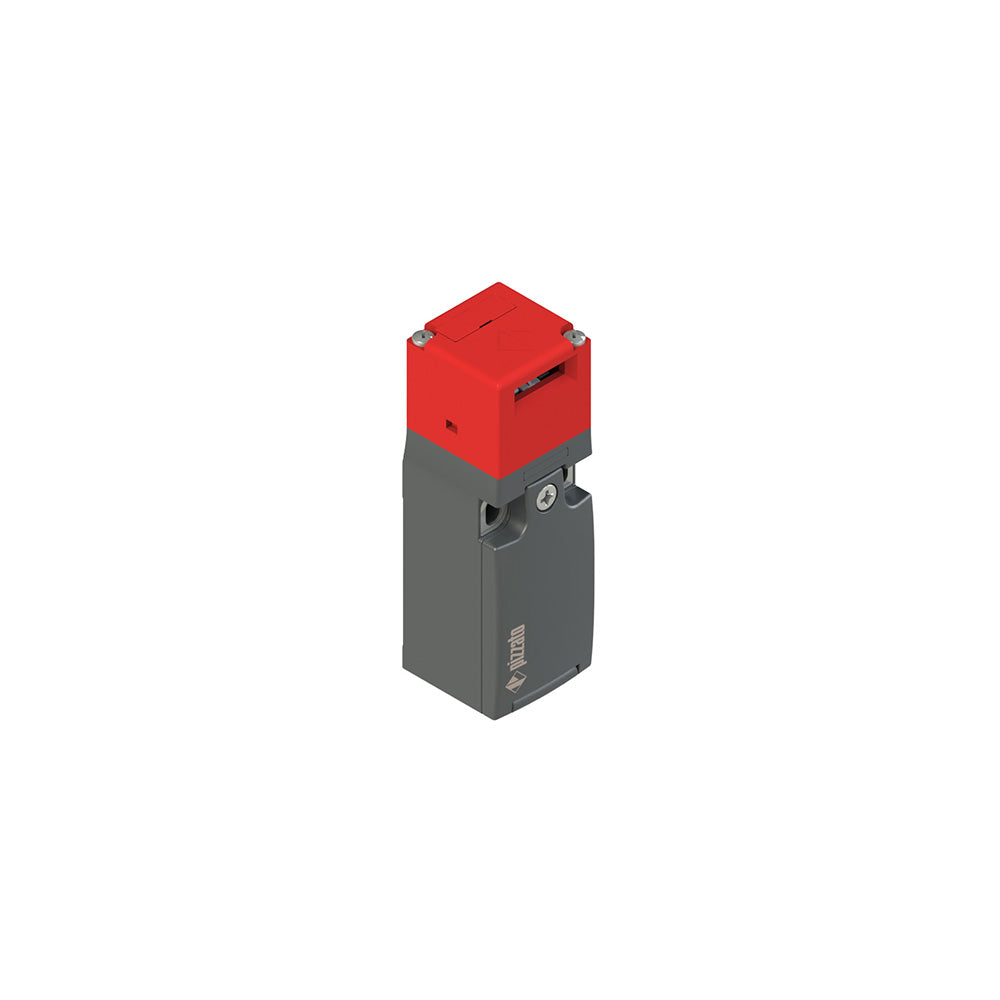

Safety switch with separate actuator, Housing: Technopolymer housing, one threaded PG 13,5 conduit entry and external parts in stainless steel (FR series), Contact block: 1NO+1NC slow action (B6), Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 693-E3X |
|---|---|
| EAN | 8018851208706 |
| Minimum order quantity | 1 |
| Weight | 97 g |
| Customs tariff number | 85369095 |
| Product range | With separate actuator - normal duty |
| ETIM class | EC002592 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
