Pizzato
SKU:FR 630-A
FR 630-A
FR 630-A
Prezzo di listino
€10,79 EUR
Prezzo di listino
Prezzo scontato
€10,79 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

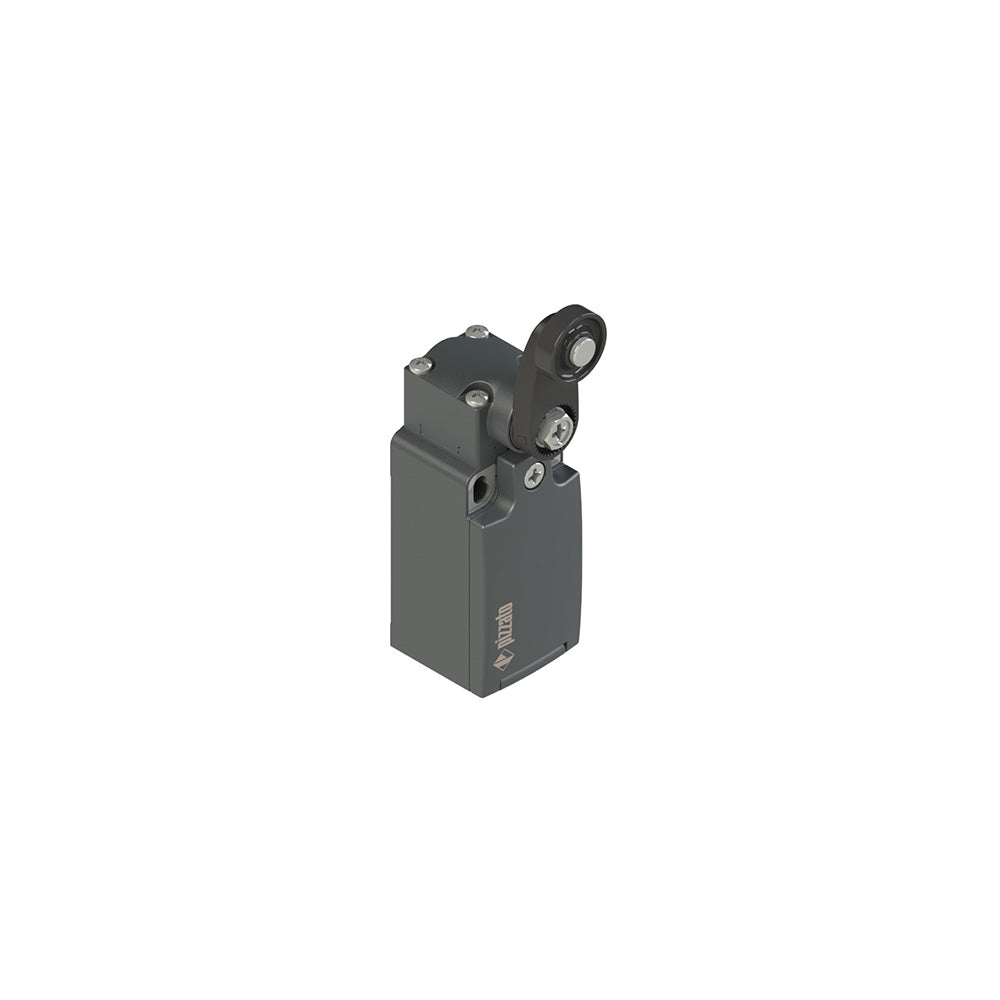

Position switch with roller lever, Housing: Technopolymer housing, one threaded PG 11 conduit entry (FR series), Contact block: 1NO+1NC slow action (B6), Head: Regular head for rotating levers , Actuator: Rotating plastic lever with technopolymer roller, 18 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 630-A |
|---|---|
| EAN | 8018851161018 |
| Minimum order quantity | 1 |
| Weight | 87 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
