Pizzato
SKU:FR 602-W3M1
FR 602-W3M1
FR 602-W3M1
Prezzo di listino
€11,89 EUR
Prezzo di listino
Prezzo scontato
€11,89 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

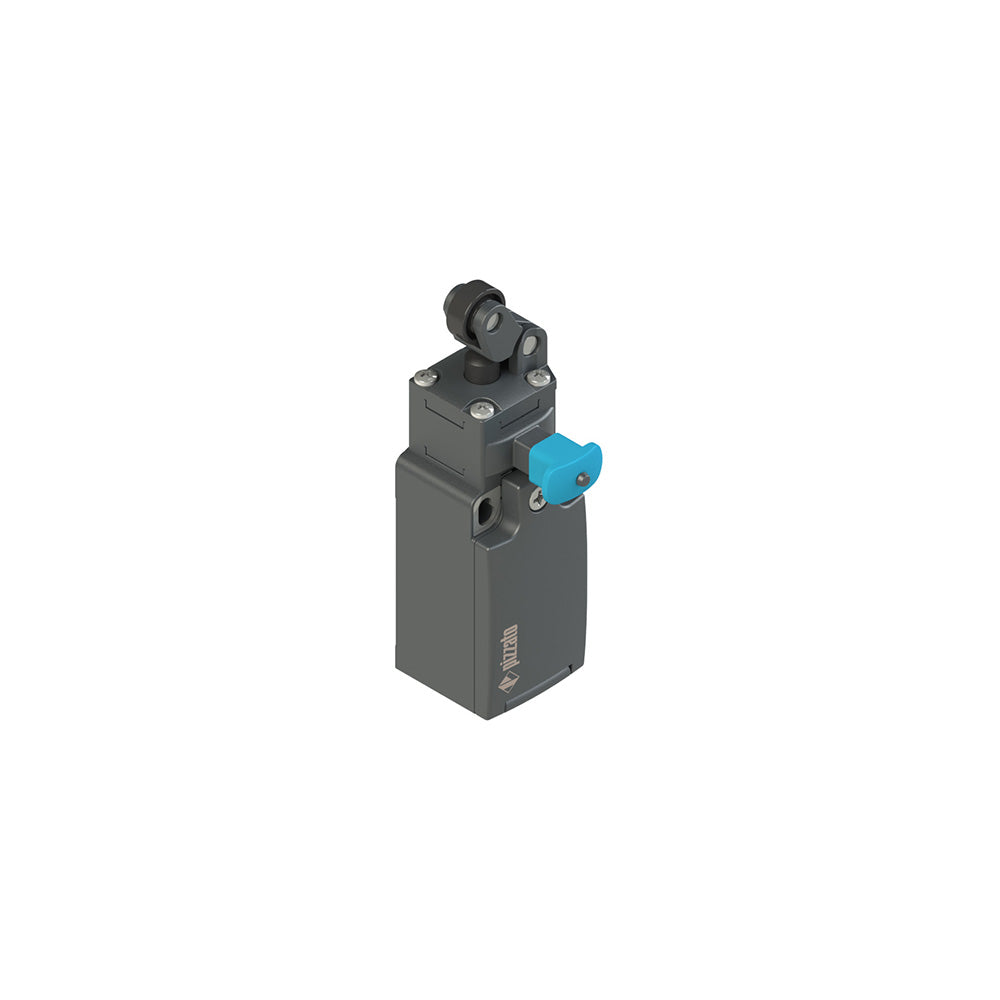

Position switch with one-way roller and reset device, Housing: Technopolymer housing, one threaded M16x1,5 conduit entry (FR series), Contact block: 1NO+1NC slow action (B6), Head: With reset device and one-way roller, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 602-W3M1 |
|---|---|
| EAN | 8018851166495 |
| Minimum order quantity | 1 |
| Weight | 85 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
