Pizzato
SKU:FR 2156-M1
FR 2156-M1
FR 2156-M1
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

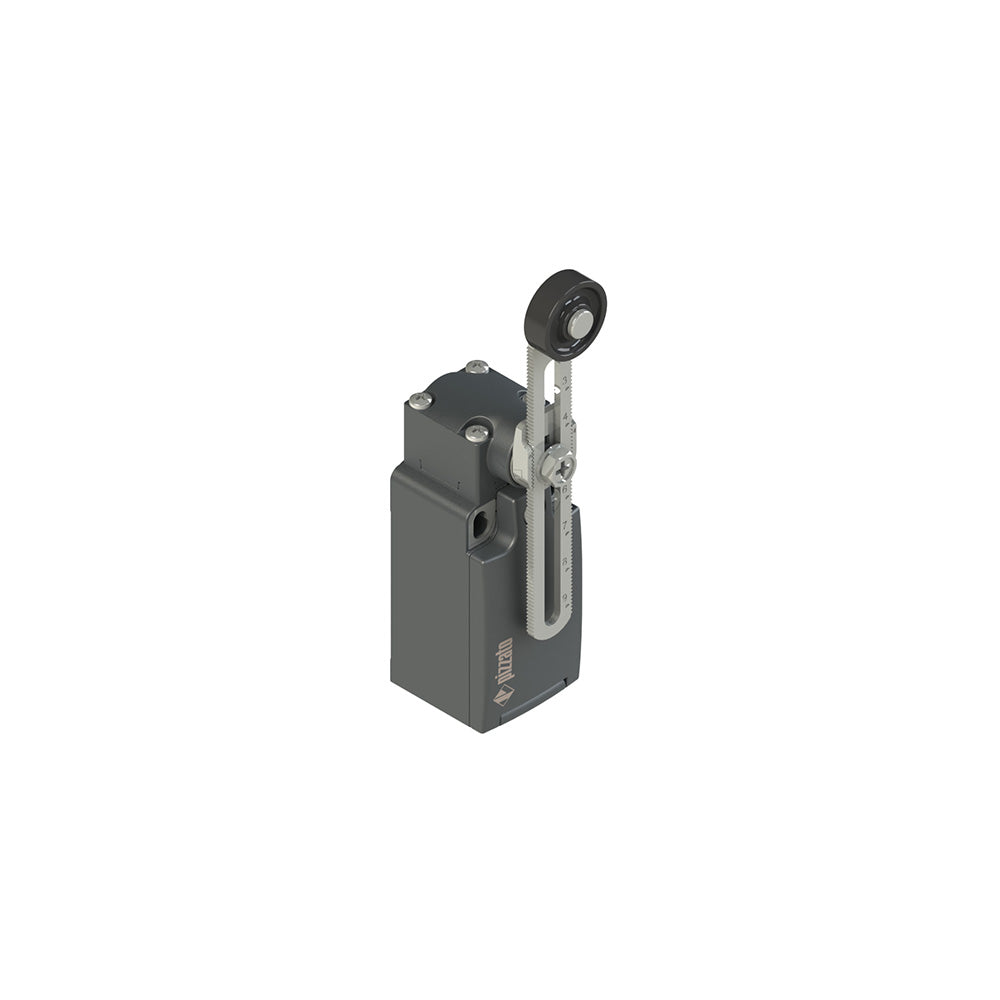

Position switch with adjustable roller lever, Housing: Technopolymer housing, one threaded M16x1,5 conduit entry (FR series), Contact block: 3NC slow action (B21), Head: Regular head for rotating levers , Actuator: Adjustable safety lever with technopolymer roller, 20 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 2156-M1 |
|---|---|
| EAN | 8018851474347 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
