Pizzato
SKU:FR 2033-M2
FR 2033-M2
FR 2033-M2
Prezzo di listino
€15,75 EUR
Prezzo di listino
Prezzo scontato
€15,75 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

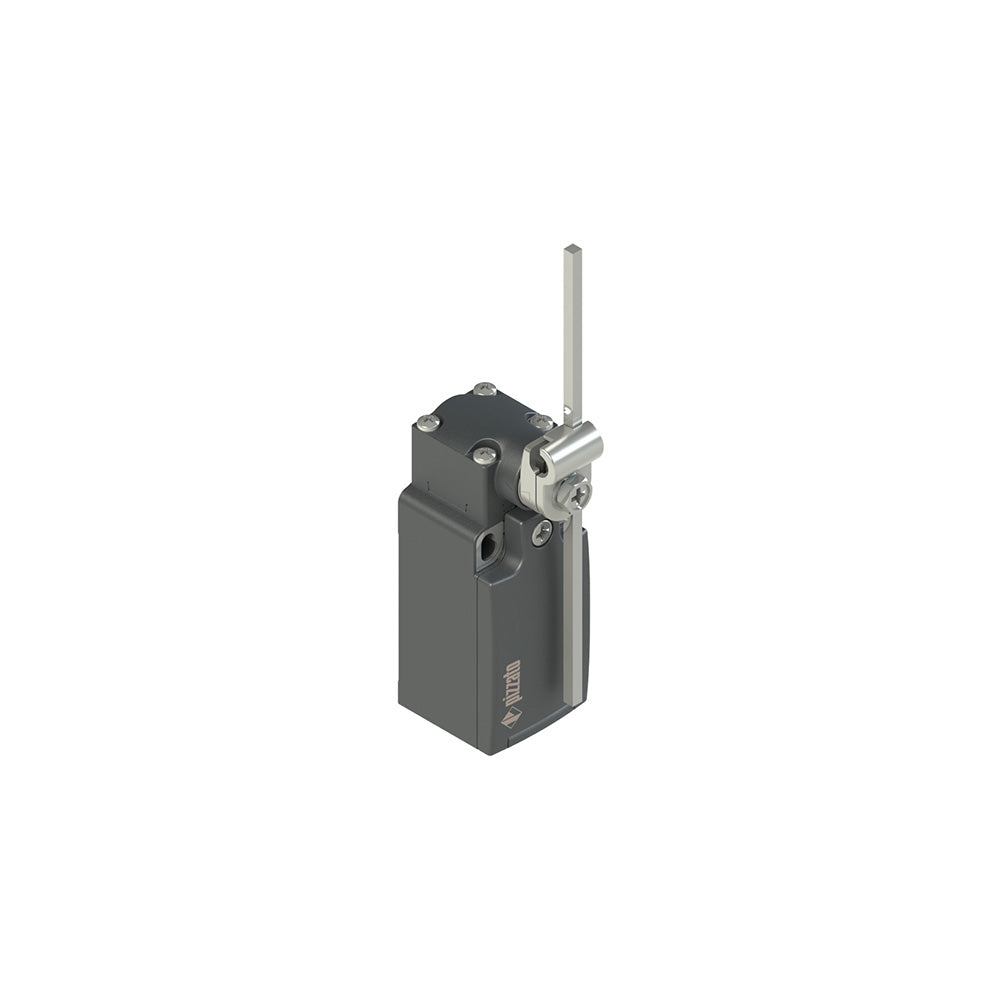

Position switch with adjustable square rod lever, Housing: Technopolymer housing, one threaded M20x1,5 conduit entry (FR series), Contact block: 1NO+2NC slow action (B20), Head: Regular head for rotating levers , Actuator: With adjustable square stainless steel rod lever 3x3x125 mm, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | FR 2033-M2 |
|---|---|
| EAN | 8018851345180 |
| Minimum order quantity | 1 |
| Weight | 103 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
