Pizzato
SKU:FR 1656-K70
FR 1656-K70
FR 1656-K70
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

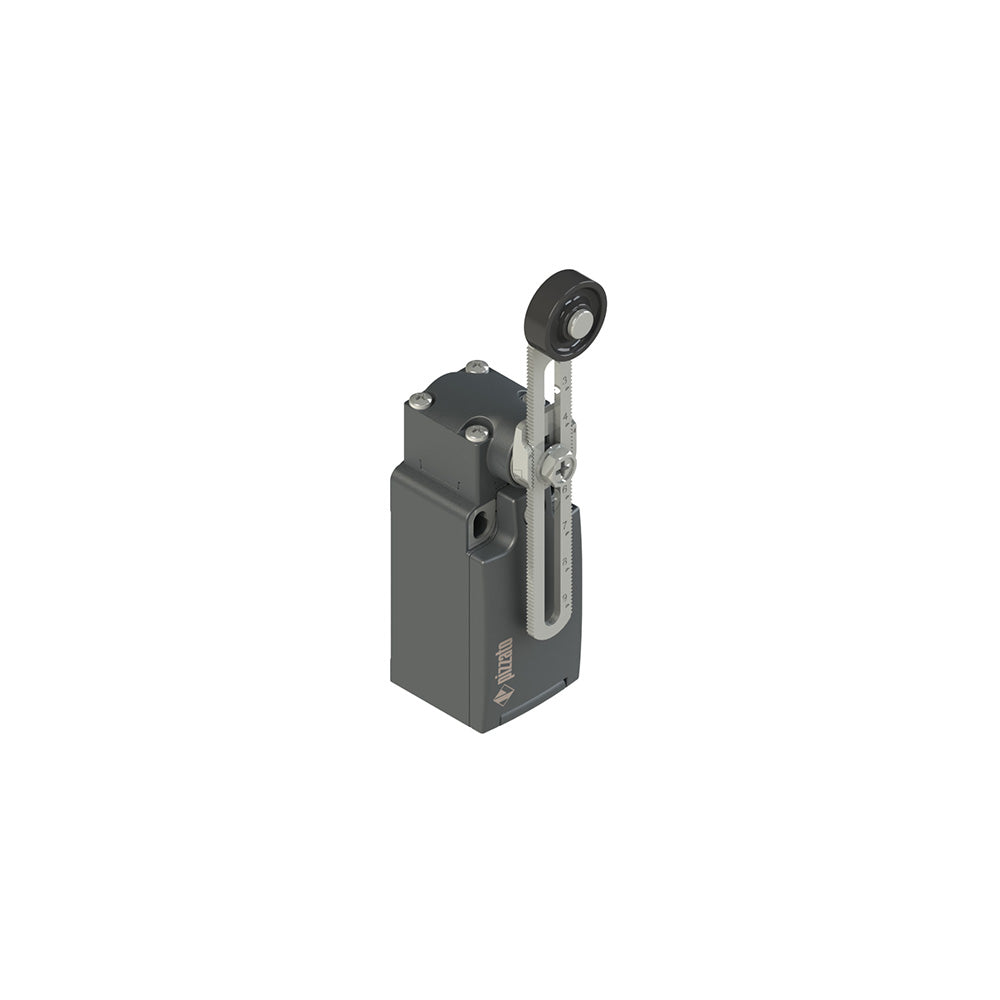

Position switch with adjustable roller lever, Housing: Technopolymer housing, one threaded PG 13,5 conduit entry (FR series), Contact block: 2NC slow action, independent contacts (B16), Head: For rotating levers for 2NC contack blocks, slow action independent, Actuator: Adjustable safety lever with technopolymer roller, 20 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 1656-K70 |
|---|---|
| EAN | 8018851131806 |
| Minimum order quantity | 1 |
| Weight | 111 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
