Pizzato
SKU:FR 1655-R27
FR 1655-R27
FR 1655-R27
Availability: Ships in 2–3 weeks
Impossibile caricare la disponibilità di ritiro

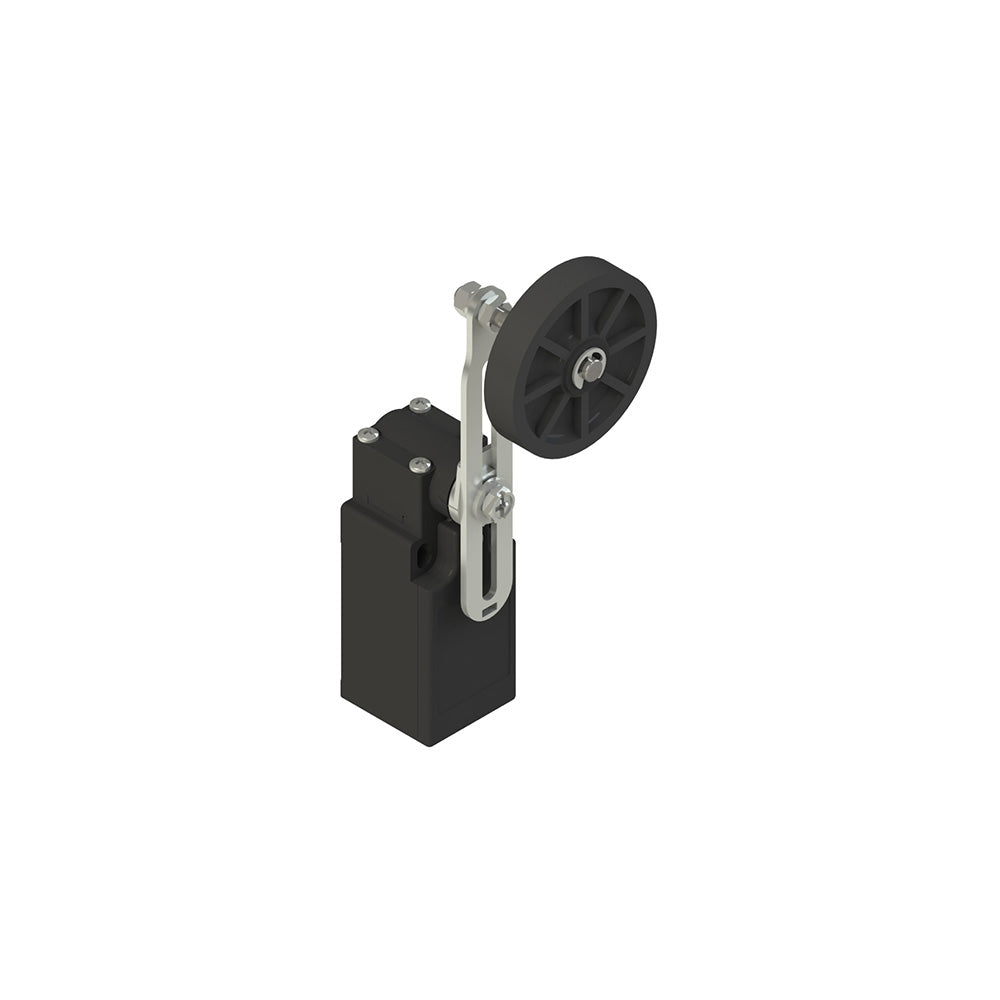

Position switch with adjustable lever and roller, Housing: Technopolymer housing, one threaded PG 13,5 conduit entry (FR series), Contact block: 2NC slow action, independent contacts (B16), Head: For rotating levers for 2NC contack blocks, slow action independent, Actuator: With adjustable protruding rubber roller lever, 50 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | FR 1655-R27 |
|---|---|
| EAN | 8018851390128 |
| Minimum order quantity | 1 |
| Weight | 139 g |
| Customs tariff number | 85369095 |
| Product range | Lift sector switches |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
