Pizzato
SKU:FP E136-M2
FP E136-M2
FP E136-M2
Prezzo di listino
€32,02 EUR
Prezzo di listino
Prezzo scontato
€32,02 EUR
Spese di spedizione calcolate al check-out.
Availability: Ships in 2–3 weeks
Quantità
Impossibile caricare la disponibilità di ritiro

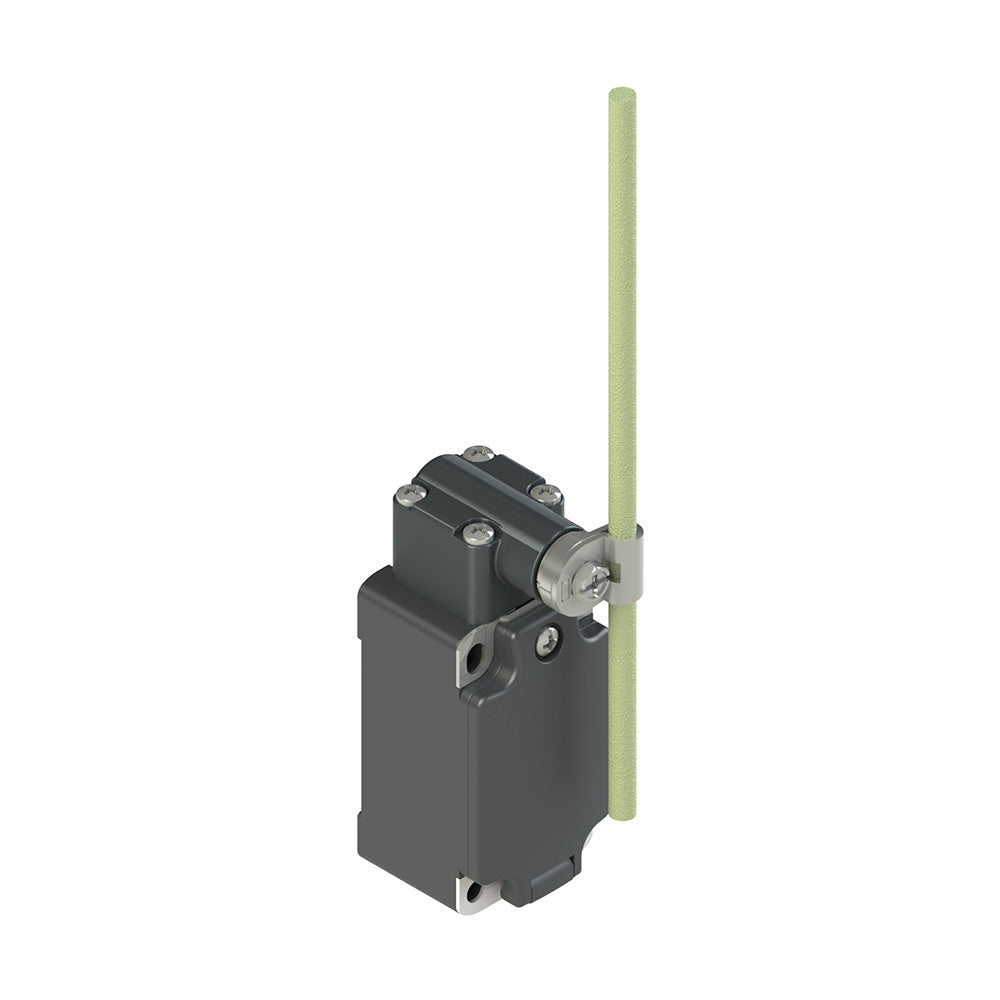

Position switch with adjustable glass-fibre rod lever, Housing: Made of glass-reinforced technopolymer, one threaded M20x1,5 conduit entry (FP series), Contact block: 1NO-1NC electronic PNP (E1), Head: Regular head for rotating levers , Actuator: With adjustable glass-fibre rod lever, 6 mm diameter, Protection degree: IP67 according to EN 60529.
Technical specifications
| Manufacturer part number | FP E136-M2 |
|---|---|
| EAN | 8018851334375 |
| Minimum order quantity | 1 |
| Weight | 174 g |
| Customs tariff number | 85369095 |
| Product range | FP |
| ETIM class | EC000030 |
